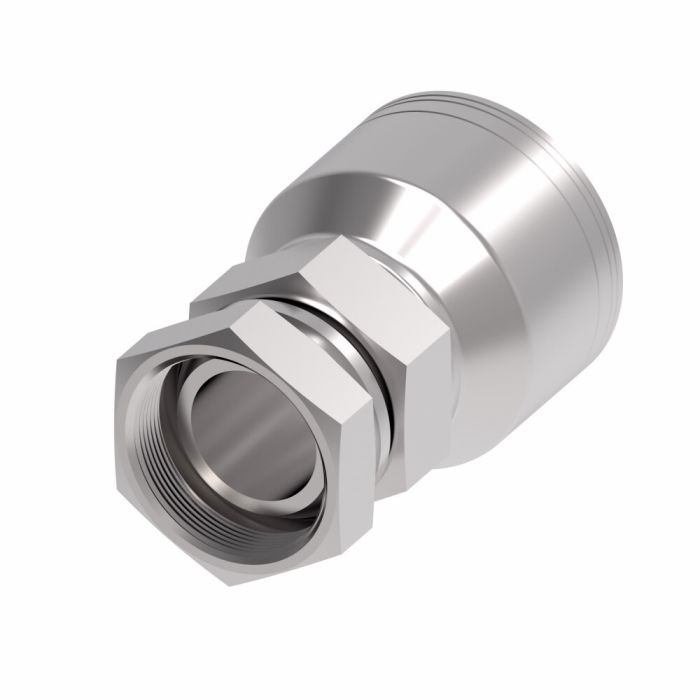

Danfoss / Eaton Crimp Fitting FM SWL NPT

Ask A Question

Description & Features

This Aeroquip by Danfoss / Eaton crimp fitting is designed for general purpose low and medium pressure hydraulic applications. It is suitable for use with H277 or H435 hoses where shock hazards exist.

The Danfoss / Eaton Crimp Fitting FM SWL NPT features Dura-Kote plating for superior corrosion resistance and an innovative design to deliver enhanced performance and maximum uptime, extending hose assembly life. Constructed from carbon steel, this fitting has a female NPSM end and a -20 hose dash size. The hex size 2 is 1.75.

SKU: 1AA20SP20

Supplier Part Number (MPN): 1AA20SP20

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.65 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
FNPSM Swivel, Hose
Connection Type 1
Hose
Connection Type 2
FNPSM Swivel
Construction Style
Crimp
Cut-Off Factor
2.1 in
Dimension Standards
SAE J1176
Dimensions
3.65 in L
End Gender 1
Female
End Size 1
20
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
1-7/8 x 1-3/4 in
Hose Dash Size
20
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/4-11-1/2
Thread Type
NPSM

Product Questions & Answers (1)

Question by: Dustin R on Apr 23, 2025, 3:42 PM
Is this fitting okay for hydraulic systems where there might be some shock?
Answer by: Customer Support on Apr 25, 2025, 6:43 AM
Yes, this Eaton crimp fitting is suitable for general purpose low and medium pressure hydraulic applications, especially where shock hazards might be present. It's designed for use with H277 or H435 hoses in those situations.
