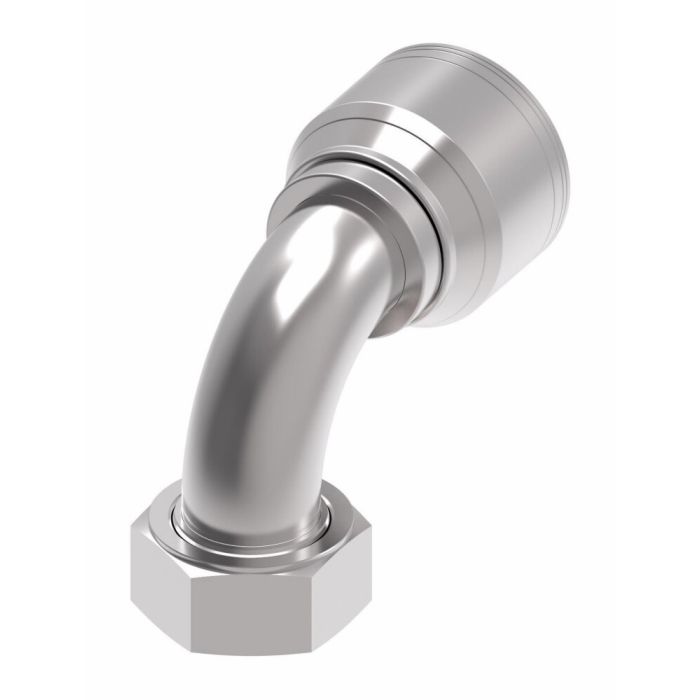

main product photo

AEROQUIP FITTING

Ask A Question

Description & Features

The Aeroquip Fitting by Danfoss Power Solutions is designed for use in general-purpose low and medium pressure hydraulics. This fitting is engineered to support hoses where shock hazards exist, compatible with H277 or H435 hoses. The innovative design ensures reliable performance and maximum uptime for various industrial applications.

Constructed from high-quality carbon steel, this fitting features Dura-Kote plating, providing exceptional corrosion resistance. The 90-degree elbow design includes a female 1 end gender with an ORS end type, and is suitable for a hose dash size of -24.

With a product width of 2.7 inches, this durable fitting is a critical component for maintaining the integrity and longevity of hose assemblies. The part's efficient design and construction reflect the commitment to quality by Danfoss Power Solutions.

Supplier Part Number: 1AA24FRB24

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.53 in
Compatible Hose ID
1-1/2 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.81 in
Dimension Standards
SAE J1176
Dimensions
5.75 in L x 2.7 in W x 4.62 in H
Drop Dimensions
2.7 in
End Connection Torque
150 to 165 lb-ft
End Gender 1
Female
End Size 1
2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
2-1/4 in
Hose Dash Size
24
Inside Diameter
1.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
2-12
Thread Type
UN

Product Questions & Answers (2)

Question by: Brent B on Nov 26, 2025, 12:12 PM
Trying to match up a hose end, is this fitting meant for a -24 hose dash size?
Answer by: Customer Support on Nov 28, 2025, 8:58 AM
The key callout here is the hose dash size. This one is listed as -24, so it is intended to pair with a -24 hose size in the Aeroquip fitting line.
Question by: Roy C on May 14, 2025, 7:34 AM
Got a -24 hose on a medium pressure line that runs near some electrical equipment. figure there's some shock risk. will the 1AA24FRB24 work for that kind of setup?
Answer by: Customer Support on May 15, 2025, 8:50 AM
For applications where shock hazards are a concern, you'd want to pair this fitting with either an H277 or H435 hose rather than just any -24 hose you have on hand. The fitting itself is rated for general purpose low and medium pressure hydraulics, and that hose pairing guidance is specifically built into its application specs. The ORS end type on the female side connects to your -24 hose end, and the 90-degree elbow orientation helps manage routing in tighter or more congested hydraulic connections runs.
