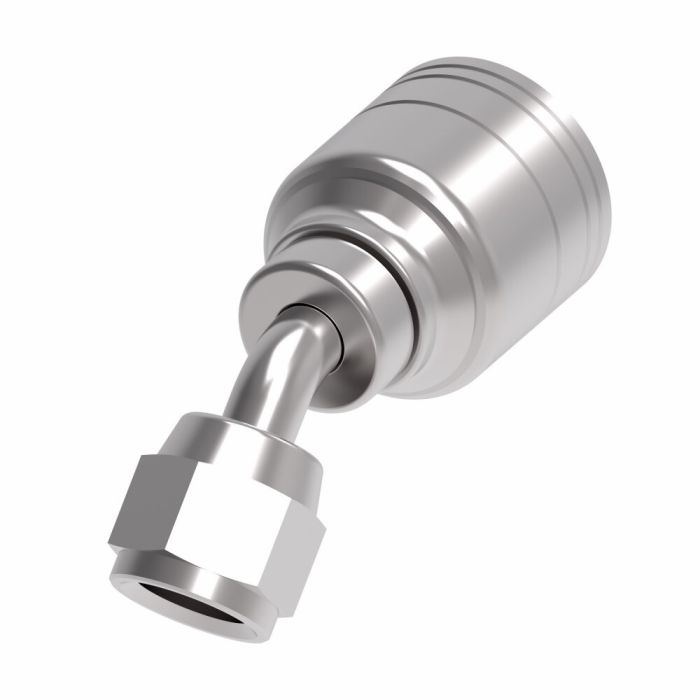

Aeroquip M/M+ 5 UNIV SWIV ELL

Ask A Question

Description & Features

The Aeroquip M/M+ 5 Univ Swiv Ell by Danfoss Power Solutions offers robust performance for general purpose low and medium pressure hydraulics applications particularly suited for use with hoses where shock hazards exist. This fitting is crafted from carbon steel and features superior corrosion resistance due to its innovative Dura-Kote plating.

This carbon steel elbow is engineered to extend hose assembly life through its unique system design which ensures reliability and maximum uptime. It includes a 0.5-inch female SAE 37 end type and is compatible with line/hose/tube connections. The product width is 0.88 inches providing a compact solution for various settings.

Aeroquip M/M+ 5 Univ Swiv Ell is an exceptional choice for those needing dependable hydraulic fittings without compromising on durability or performance. The fitting does not require any calibration machining or adjustment ensuring straightforward installation and use.

MPN: 1AA5FJA4

Supplier Part Number: 1AA5FJA4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.92 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
5/16 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.12 in
Dimension Standards
SAE J1176
Dimensions
2.72 in L x 0.88 in W x 1.48 in H
Drop Dimensions
0.36 in
End Connection Torque
15 to 16 lb-ft
End Gender 1
Female
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
5/8 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Product Questions & Answers (2)

Question by: Daryl R on Nov 3, 2025, 7:21 AM
trying to swap out an elbow on a -4 hose, is this one set up for a 1/2 inch female SAE 37?
Answer by: Customer Support on Nov 4, 2025, 2:46 PM
It’s built with a 0.5 inch female SAE 37 end, and it’s matched up for a -4 hose dash size. The other end is meant for line, hose, or tube connections, so it’s used as a general-purpose swivel elbow in those setups.
Question by: Rod H on Dec 15, 2025, 9:15 PM
does this fitting hold up alright in applications where you got hose shock to worry about? seen some fittings crack out pretty quick in those situations
Answer by: Customer Support on Dec 17, 2025, 11:31 AM
For general low and medium pressure hydraulic work, this elbow handles it fine. That said, if shock hazards are a real concern in your setup, Aeroquip actually points toward using H277 or H435 hose with it rather than standard hose. Pairing the right hose to the fitting is what keeps the assembly from wearing out ahead of schedule.
