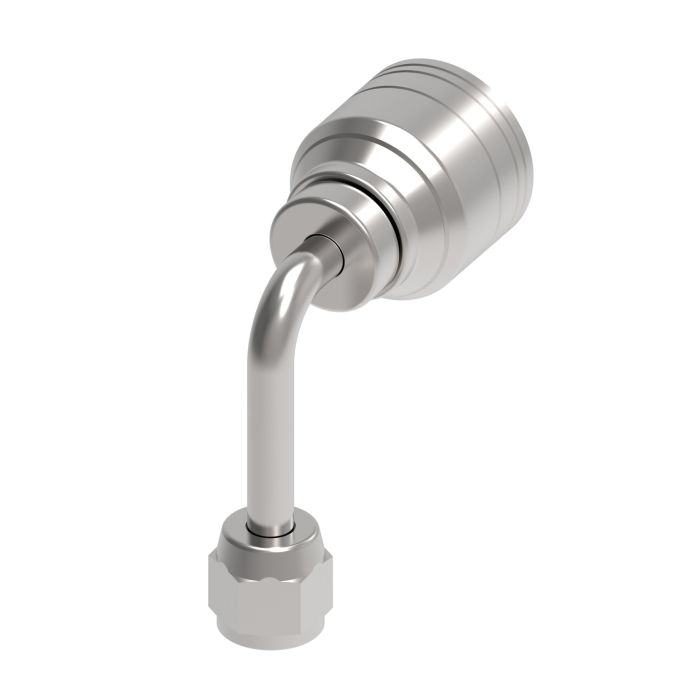

main product photo

Aeroquip M/M F UNIV SWIV ELL

Ask A Question

Description & Features

Designed for general-purpose low and medium-pressure hydraulic applications, the Eaton Aeroquip M/M F UNIV SWIV ELL fitting is ideal for systems exposed to shock hazards. Engineered with a female JIC/SAE 37-degree swivel, this 90˚ long drop elbow ensures reliable performance and longevity. The fitting features Dura-Kote plating, offering superior corrosion resistance to extend the life of hose assemblies.

Constructed from durable carbon steel, this fitting is compatible with hose sizes H277 or H435. With a drop dimension of 1.8000 inches, it supports a hose dash size of -4, making it versatile for various industrial needs. The innovative design not only maximizes uptime but also supports the efficient operation of hydraulic systems. Ensure your hydraulic systems are equipped with components that deliver consistent and dependable performance.

SKU: 1AA5FJC4

Supplier Part Number (MPN): 1AA5FJC4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.79 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
5/16 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.996 in
Dimension Standards
SAE J1176
Dimensions
2.23 in L x 0.88 in W x 2.61 in H
Drop Dimensions
1.8 in
End Connection Torque
15 to 16 lb-ft
End Gender 1
Female
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
5/8 in
Hose Dash Size
04
Inside Diameter
0.17 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Product Questions & Answers (1)

Question by: Hank W on Jul 17, 2025, 7:32 AM
what's the drop dimension on this elbow fitting, and is the -4 hose dash size right for half-inch line connections?
Answer by: Customer Support on Jul 19, 2025, 6:04 AM
The drop dimension on this fitting is 1.8 inches, and yes, the -4 dash size corresponds to a half-inch end size, so those two details line up correctly for that application. It's a 90-degree long drop swivel elbow with a Female JIC/SAE 37-degree seat on one end, carbon steel construction, and Dura-Kote plating that gives it solid corrosion resistance for general purpose low and medium pressure hydraulic work.
