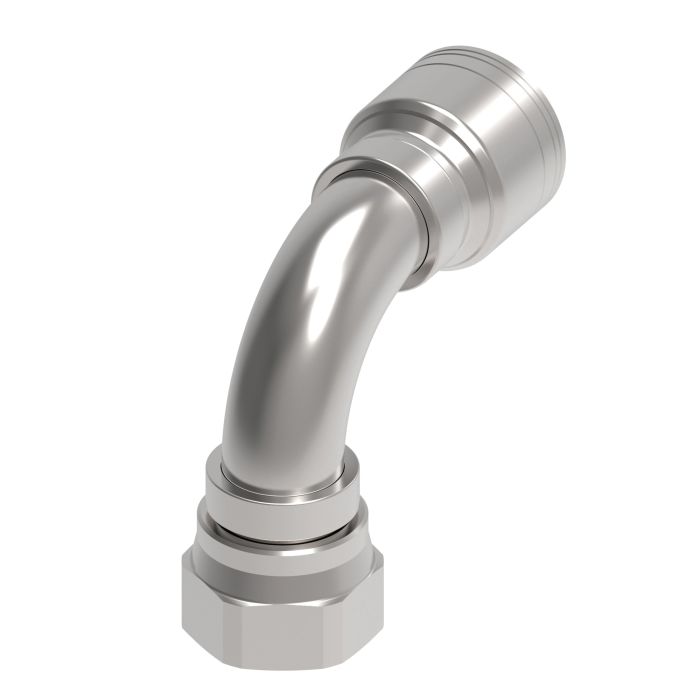

DANFOSS / EATON 316SS 90DEG -4 X 6 FJIC SWV

Ask A Question

Description & Features

Engineered for demanding industrial applications the 316 stainless steel fitting by Danfoss Hydraulics (Luzhou) Co. Ltd. is a 90-degree angle adapter with a -4 x 6 Female JIC swivel. This component is constructed from high-quality stainless steel making it ideal for high-pressure environments ensuring consistent performance without the need for calibration or adjustment.

Suited for various hydraulic systems this fitting boasts exceptional robustness and simplicity due to the absence of electrical components or other frills. The design focus on durability ensures reliable operation even under rigorous conditions.

Additionally the fitting is not color-coded does not require a mandrel and includes no blades or check valves. This straightforward design reduces potential points of failure thereby enhancing its operational reliability.

MPN: 1AA6FJB4C

Supplier Part Number: 1AA6FJB4C

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.93 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.13 in
Dimension Standards
SAE J1176
Dimensions
2.3 in L x 0.88 in W x 1.91 in H
Drop Dimensions
1.07 in
End Connection Torque
18 to 20 lb-ft
End Size 1
06
Fitting Type
90 deg Elbow
Hex Size
0.67 in
Hose Dash Size
04
Inside Diameter
0.17 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
1A Series
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Dwight P on Dec 11, 2025, 7:53 AM
Got a tight spot in my hydraulic setup where the line needs to make a hard turn real close to the port. This a full 90-degree fitting or one of them swept elbow styles?
Answer by: Customer Support on Dec 12, 2025, 8:32 AM
Full 90-degree angle adapter. The geometry is a true right-angle turn, so it works well in cramped mounting situations where you need a clean directional change without adding much run length to the line. Paired with the Female JIC swivel on the -6 end, you also get some rotational flexibility during installation, which helps a lot when the fitting body itself can't rotate once it's seated.
