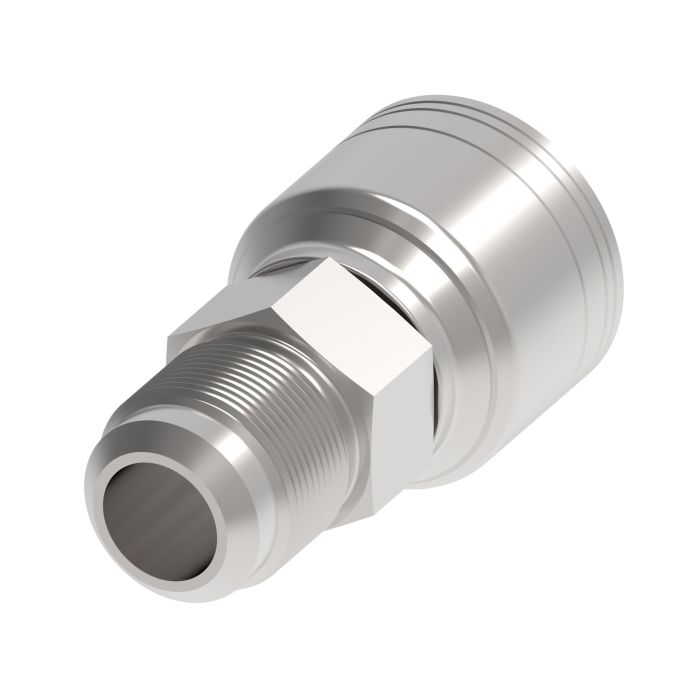

Aeroquip Fitting (Perm) SAE 45 Deg R2 MM+

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic systems, the Aeroquip Fitting (Perm) SAE 45 Deg R2 MM+ is a reliable choice for challenging environments. This fitting features a male end with a 0.625-inch SAE 45-degree flare, making it ideal for use with H277 or H435 hoses where shock hazards are present. Its robust carbon steel construction ensures durability and performance under demanding conditions.

The fitting is engineered with Dura-Kote plating, providing superior corrosion resistance to extend the life of hose assemblies. Its innovative design not only enhances performance but also maximizes uptime, making it a valuable component in maintaining system reliability. The Aeroquip brand, known for quality, ensures that this fitting meets industrial standards for hydraulic applications.

SKU: 1AA6MS6

Supplier Part Number (MPN): 1AA6MS6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.06 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Hose, Male SAE Inverted Flared
Connection Type 1
Hose
Connection Type 2
Male SAE 45 deg Inverted Flare
Construction Style
Crimp
Cut-Off Factor
1.23 in
Dimension Standards
SAE J1176
Dimensions
2.06 in L
End Gender 1
Male
End Size 1
5/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2661, EC115, EC118, EC215, EC881, FC510, FC579, FC611, FC619, FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH195, GH194, GH681, GH663, GH781, GH793 and WH004 Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
5/8-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Wayne J on Aug 30, 2025, 7:42 PM
got a -6 hose, is this the right end for a 45 flare hookup?
Answer by: Customer Support on Sep 1, 2025, 12:35 PM
The key callouts on this one are SAE 45 on the end type and a -6 hose dash size. It is a male end, with the end size listed as 0.625, and it is meant to connect into a line, hose, or tube setup that uses an SAE 45 flare style connection.
