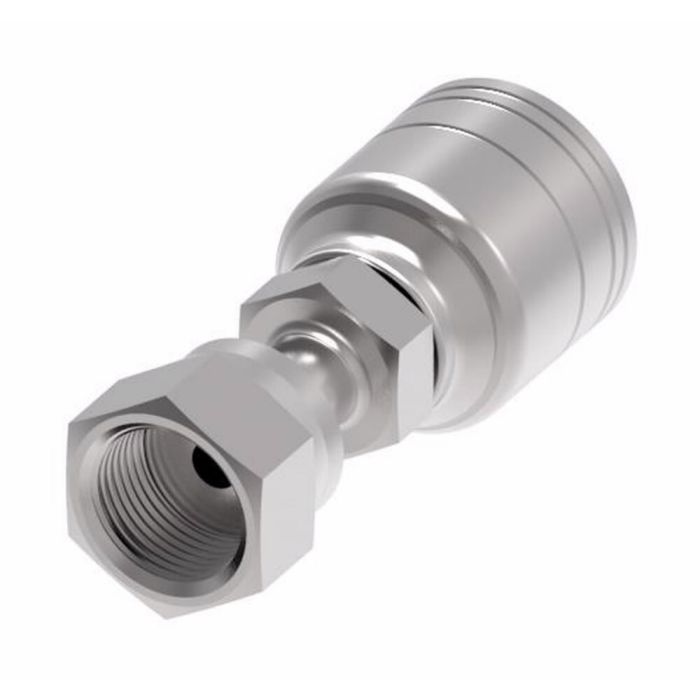

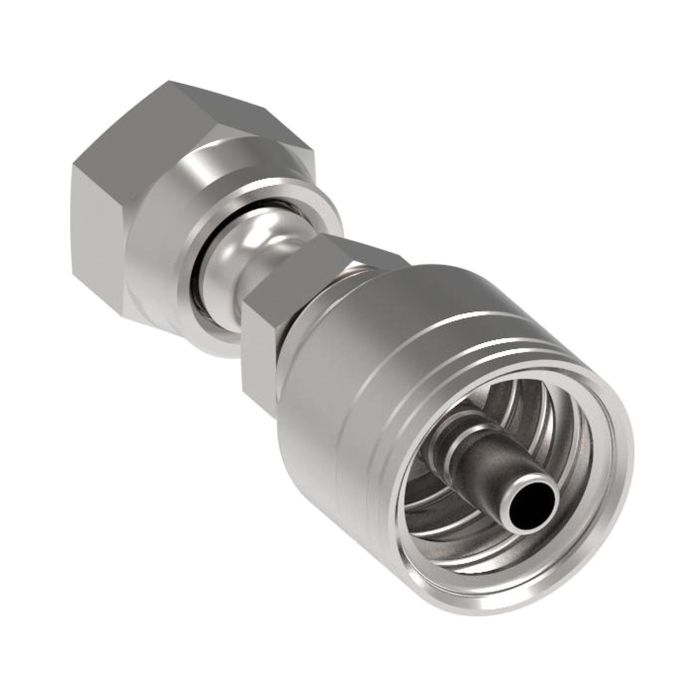

AEROQUIP MM FITTING

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic applications, this carbon steel fitting features an ORS end connection (0.8125 in.) on one side and a line/hose/tube end on the other, with a 0.94 hex size and a -8 hose dash size. Dura-Kote plating provides reliable corrosion resistance in demanding service environments. Where shock hazards are present, H277 or H435 series fittings are recommended instead. The Aeroquip MM Fitting is a Danfoss Power Solutions product, engineered as part of a system-level approach to extend hose assembly service life and support consistent uptime.

SKU: 1AA8FR10

Supplier Part Number (MPN): 1AA8FR10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.54 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.51 in
Dimension Standards
SAE J1176
Dimensions
3.09 in L x 1.39 in W x 1.39 in H
End Connection Torque
32 to 35 lb-ft
End Gender 1
Female
End Size 1
13/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
GH663, GH681 and GH781 Series Hoses
Hex Size
0.94 in
Hose Dash Size
10
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
Series
1A Series
Thread Sealant
Without Thread Sealant
Thread Size
13/16-16
Thread Type
UN

Product Questions & Answers (1)

Question by: Duane G on Mar 31, 2025, 8:30 PM
trying to match up a hose end i’ve got, is this one a female ORS swivel for a -8 hose?
Answer by: Customer Support on Apr 2, 2025, 6:43 AM
You’re looking at a 1A Series crimp hose fitting with a female ORS swivel end and a -8 hose dash size. The ORS end size is listed as 0.8125.
