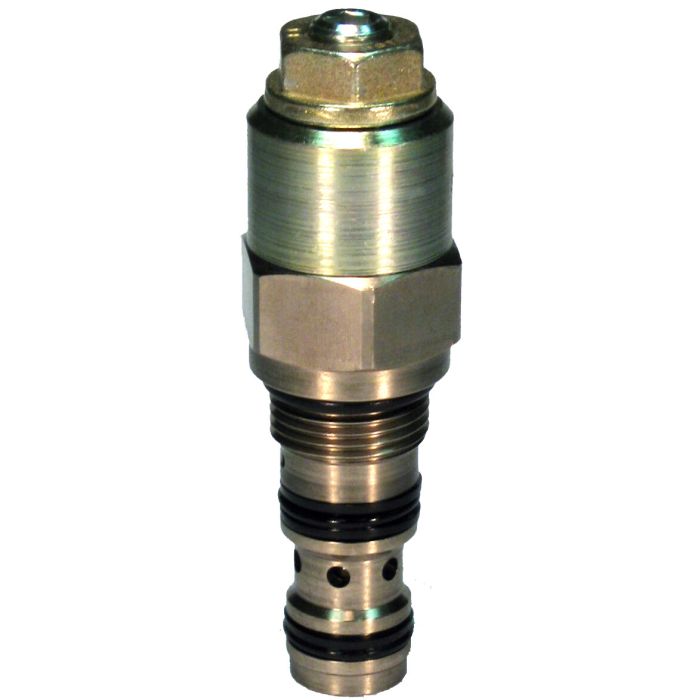

main product photo

1CE30 Series Counterbalance Cartridge Valve, 1740-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 2.5:1 Pilot Ratio

Ask A Question

Description & Features

The 1CE30 Series Counterbalance Cartridge Valve from Danfoss/Eaton is a screw-in type valve with a 2.5:1 pilot ratio and locknut adjustment. Factory setting is 3045.00 PSI within a pressure range of 1740-5075 PSI. It controls moving loads in mobile and industrial applications, preventing load runaway for enhanced safety.

This counterbalance valve is suitable for harvesters and refuse haulers, requiring an A6610 cavity or housing for installation. It has an 8 gpm rated flow, a 4000 psi maximum load induced pressure, and a 5000 psi maximum relief pressure. Operating temperature range is -22° to +194°F with a maximum internal leakage of 5 drops per minute, based on an oil temperature of 104°F and 150 SSU. Recommended filtration is ISO level 18/13 or better. Note: Pressures over 3000 psi require a steel housing.

SKU: 406AA00004A

Supplier Part Number (MPN): 406AA00004A

Alternate Part Numbers: 1CE30F35S2, C1MG50

Specifications

Adjustment Style
Screw with Locknut
Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Housing
None
Pilot Ratio
2.5:1
Pressure Range (psi)
1740-5075
Pressure Setting
3045
Seal Material
Nitrile
Special Features
None
Style
Pilot assisted relief with check
Supplier Part Number
406AA00004A
Alternate Part Numbers
Alternate Part Number 1CE30F35S2, Alternate Part Number C1MG50
Product Weight
0.33 lbs

Related Documents

Similar Products

Model Number Part Number Pilot Ratio Adjustment Style Pressure Range (psi) Pressure Setting Housing Seal Material Price Action
1CE30 Series Counterbalance Cartridge Valve, 1740-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 5:1 Pilot Ratio

1CE30F35S5 1CE30 Series Cartridge Valve

406AA00005A

5:1

Screw with Locknut

1740-5075

3045

None

Nitrile

1CE30 Series Counterbalance Cartridge Valve, 1740-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 2.5:1 Pilot Ratio

1CE30F35S2 1CE30 Series Cartridge Valve

406AA00004A

2.5:1

Screw with Locknut

1740-5075

3045

None

Nitrile

1CE30 Series Counterbalance Cartridge Valve, 1740-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 10:1 Pilot Ratio

1CE30F35S10 1CE30 Series Cartridge Valve

406AA00006A

10:1

Screw with Locknut

1740-5075

3045

None

Nitrile

Product Questions & Answers (2)

Question by: Harvey G on Aug 20, 2025, 8:07 PM
got a cylinder that likes to creep when the load’s trying to run away. is this the kind of valve that’ll hold it and keep it from free-falling if a hose pops?
Answer by: Customer Support on Aug 22, 2025, 4:32 PM
Built for load control, the 1CE30 counterbalance (overcenter) cartridge regulates flow into and out of an actuator so a moving load does not outrun the pump flow. When it is installed close to or within the actuator, it can stop runaway in a hose burst situation and provide load holding, with a free flow check for flow going into the actuator.
Question by: Duane W on Nov 19, 2025, 4:39 PM
what's the pilot ratio on this one and does that matter for something like a long boom setup
Answer by: Customer Support on Nov 21, 2025, 6:45 AM
The 2.5:1 pilot ratio is actually the right call for exactly that kind of application. Long booms and flexible frameworks tend to be unstable by nature, and a lower pilot ratio like 2.5:1 keeps the valve from opening too aggressively when pilot pressure is applied. The higher ratios, like 5:1 or 10:1, are better when the load is more predictable or constant. For anything with flex or bounce in the structure, 2.5:1 gives you the tightest control over how that load moves.
