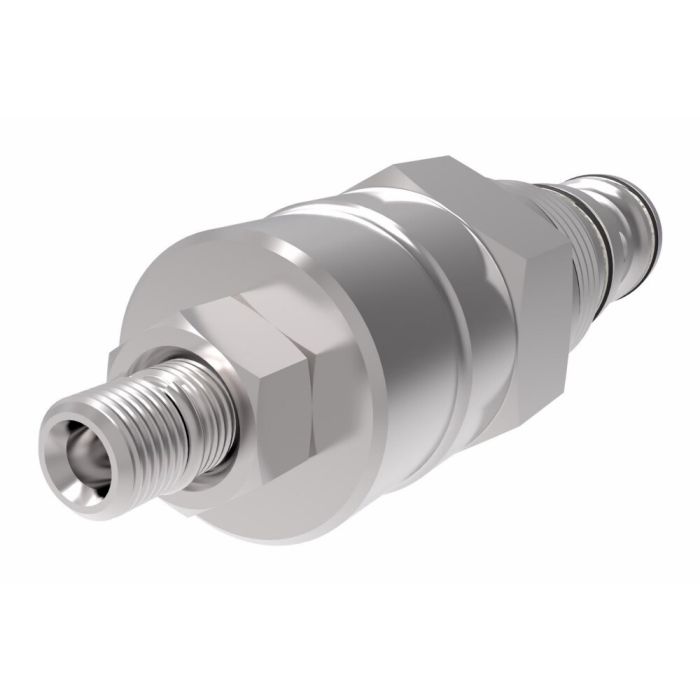

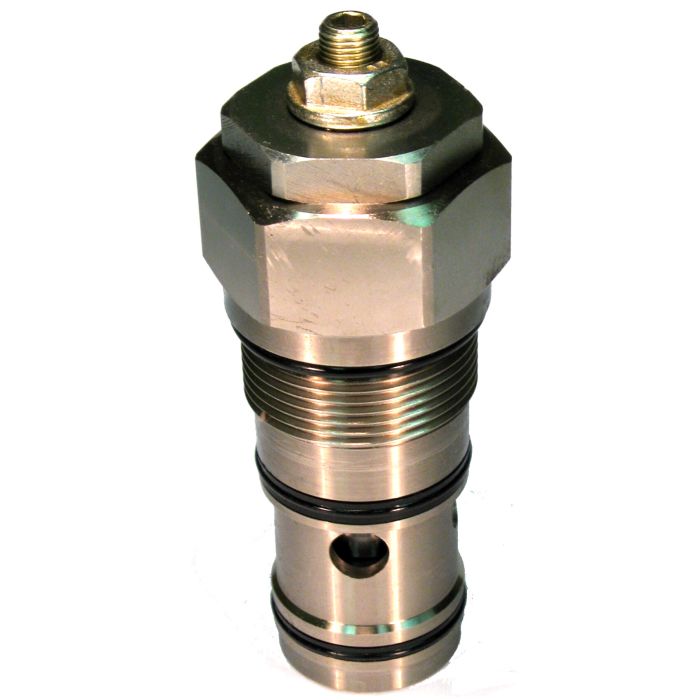

main product photo

1CE300 Series Counterbalance Cartridge Valve, 1015-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 3:1 Pilot Ratio

Ask A Question

Description & Features

Designed for load holding and hose failure protection in mobile and industrial hydraulic circuits, the 1CE300 Series Counterbalance Cartridge Valve is a 3-port, externally piloted, screw-in cartridge valve with a 3:1 pilot ratio, a configuration well suited for applications where load variation or machine structure may contribute to instability. Typical uses include harvesters, refuse haulers, and similar mobile equipment.

Factory pressure is set at 3,045 PSI within an adjustable range of 1,015–5,075 PSI, with a maximum relief pressure of 5,000 PSI and a rated flow of 80 GPM. Adjustment is made via screw with locknut. Nitrile (Buna-N) seals are standard, with an operating temperature range of -22°F to +194°F. The cartridge requires an A6935 cavity for installation, sold separately. Recommended filtration is ISO level 18/16/13 microns or better. Note that pressures exceeding 3,000 PSI require a steel housing.

SKU: 406AA00031A

Supplier Part Number (MPN): 406AA00031ASP

Alternate Part Numbers: 1CE300F35S3, C1JZ82

Specifications

Adjustment Style
Screw with Locknut
Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Housing
None (Select below)
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Maximum Load Induced Pressure
270
Maximum Relief Pressure
350
Number of Housing Ports
3
Number of Valve Ports
3
Operation
Direct Acting
Pilot Ratio
3:1
Port Type
Cartrige Only
Pressure Range (psi)
1015-5075
Pressure Setting
3045
Recommended Filtration Level
18/16/13 microns
Seal Material
Nitrile
Seal Type
Buna-N
Special Features
None
Style
Pilot assisted relief with check
Supplier Part Number
406AA00031A
Alternate Part Numbers
Alternate Part Number 1CE300F35S3, Alternate Part Number C1JZ82
Product Weight
2.00 lbs

Related Documents

Similar Products

Model Number Part Number Pilot Ratio Adjustment Style Pressure Range (psi) Pressure Setting Housing Seal Material Price Action
1CE300 Series Counterbalance Cartridge Valve, 1015-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 3:1 Pilot Ratio

1CE300F35S3 1CE300 Series Cartridge Valve

406AA00031A

3:1

Screw with Locknut

1015-5075

3045

None (Select below)

Nitrile

Product Questions & Answers (2)

Question by: Johnny P on Jun 4, 2025, 4:43 PM
got a cylinder setup that likes to run away on the way down. is this the kind of valve that’ll hold the load and keep things from free-falling if a hose lets go?
Answer by: Customer Support on Jun 5, 2025, 8:40 PM
For controlling moving loads, a counterbalance valve like this is used to prevent load runaway and provide load holding plus hose failure safety. It regulates flow into and out of the actuator, and when it is mounted close to or within the actuator it can stop runaway in a hose burst situation.
Question by: Terry H on Nov 1, 2025, 6:54 PM
What kind of machines would you typically see this valve on?
Answer by: Customer Support on Nov 3, 2025, 8:29 AM
Common applications include harvesters and refuse haulers, plus other mobile and industrial equipment where you need to control moving loads. It's also good for preventing load runaway, giving you load holding and hose failure safety.
