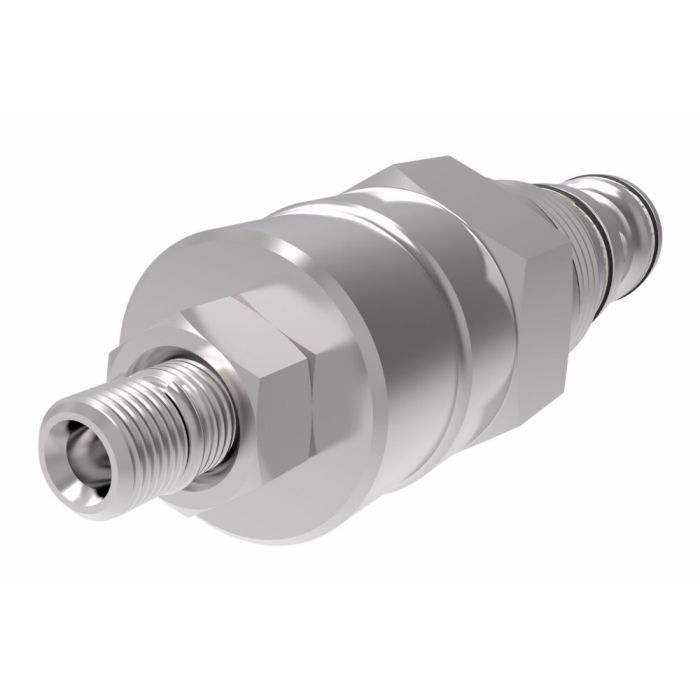

main product photo

1CEB90 Series Counterbalance Cartridge Valve, 2900 - 5075 PSI Range (Factory Setting At 3000.00), Screw adjustment, Pilot Ratio

Ask A Question

Description & Features

The 1CEB90 Series Counterbalance Cartridge Valve offers precise motion control for hydraulic actuators in demanding applications. Ideal for use in harvesters, refuse haulers, and various mobile and industrial settings, this Danfoss/Eaton valve provides static and dynamic load management.

This screw-in cartridge valve has an adjustable range of 2900 - 5075 PSI, with a factory setting at 3000 PSI. The valve features a 4:1 pilot ratio and a maximum relief pressure of 350 bar. Designed for a rated flow of 23 gpm, it ensures reliable performance within a temperature range of -22°F to +194°F.

This counterbalance valve offers interchangeability with pilot check valves of similar size, the pressure-balanced design allows for use in regenerative or proportional valve systems. Its cartridge design is economical and facilitates quick field service to minimize downtime. It requires a A12336 cavity and is best suited for applications where load varies.

SKU: 406AA00020A

Supplier Part Number (MPN): 406AA00020A

Alternate Part Numbers: 1CEB90F35S4, C1MJ85

Specifications

Adjustable Range
2900 - 5075
Adjustment Style
Screw adjustment
Application
Harvesters, refuse haulers, mobile and industrial applications
Control Ratio
4:1
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Housing
None
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Maximum Load Induced Pressure
270
Maximum Relief Pressure
350
Number of Housing Ports
3
Number of Valve Ports
4
Preset Pressure
3000
Recommended Filtration Level
18/16/13 microns
Seal Material
Nitrile
Seal Type
Nitrile
Special Features
None
Style
Pilot assisted relief with check
Supplier Part Number
406AA00020A
Alternate Part Numbers
Alternate Part Number 1CEB90F35S4, Alternate Part Number C1MJ85, Alternate Part Number MINO-00569X00297
Product Weight
0.63 lbs

Related Documents

Similar Products

Model Number Part Number Control Ratio Adjustment Style Adjustable Range Preset Pressure Housing Seal Material Price Action
1CEB90 Series Counterbalance Cartridge Valve, 2900 - 5075 PSI Range (Factory Setting At 3000.00), Screw adjustment, Pilot Ratio

1CEB90F35S4 1CEB90 Series Cartridge Valve

406AA00020A

4:1

Screw adjustment

2900 - 5075

3000

None

Nitrile

Product Questions & Answers (3)

Question by: Dustin G on Oct 24, 2025, 1:42 PM
runs about 23 gpm through our cylinder circuit and we been having runaway issues on the downstroke. this valve rated to handle that flow?
Answer by: Customer Support on Oct 26, 2025, 6:55 AM
23 GPM is exactly the rated flow for this cartridge, so you're right at the ceiling but within spec. The counterbalance function is what addresses your runaway concern. When installed on the outlet side of the actuator, it holds a set backpressure against the load so the cylinder can't move faster than the pump is feeding it. Factory setting comes in at 3000 PSI, adjustable anywhere from 2900 up to 5075 PSI with the screw adjustment if your circuit needs something different. Just make sure it goes in close-coupled to the actuator, not downstream in the line, or you lose the hose-burst protection benefit entirely.
Question by: Sherry R on Jul 5, 2025, 1:50 PM
got a 1CEB90F35S4 already, is this the same counterbalance cartridge or am i mixing up models
Answer by: Customer Support on Jul 6, 2025, 2:29 PM
For replacement matching, the model number called out for this valve is 1CEB90F35S4, and it is a 1CEB90 series counterbalance (overcenter) screw-in cartridge with a 4:1 pilot ratio and a factory preset of 3000 psi in a 2900 to 5075 psi adjustable range.
Question by: Dwayne H on Oct 22, 2025, 6:23 AM
I'm looking at using this in a mobile application. What's the story on filtration?
Answer by: Customer Support on Oct 23, 2025, 7:47 PM
This valve is rated to BS5540/4 Class 18/13 (25 micron nominal) filtration. Keeping your hydraulic fluid clean will definitely help with performance and longevity.
