1CEB90 Series Counterbalance Cartridge Valves, Up To 4000 PSI & 23 GPM

Description & Features

Application	Overcenter valves give static and dynamic control of loads by supplying a counterbalance pressure to the actuator. They prevent runaway in the event of hose burst and hold the load with minimal leakage. Single overcenter valves control unidirectional loads such as in aerial platforms, cranes or winches and dual overcenters are suited to bi-directional motion such as wheel motor applications or cylinders going over center.
Cartridge	Model 1CEB90, sold separately.
Features	Cartridge is economical and fits simple cavity. Allows quick, easy field service - reduces down time. Interchangeable with pilot check valve of a similar size. The pressure balanced valve is unaffected by back pressure, allowing service line reliefs to operate and for the valve to be used in regenerative or proportional valve systems.
Housing	A12336 cavity, sold separately.
Installation	44 lbs-ft torque cartridge into cavity. Unrestricted mounting position.
Pilot Ratios	4:1 Best suited for applications where load varies and machine structure can induce instability. Other ratios available upon request.
Recommended Filtration	BS5540/4 Class 18/13 (25 micron nominal).
Specifications	23 gpm rated flow. 4000 psi max load induced pressure, 5000 psi max relief pressure. CAUTION: Pressures over 3000 psi require a steel housing. -22°F to +194°F operating temperature range. 5 drops per minute max internal leakage. Based on oil temperature of 104°F and 150 SSU.

Products

Model Number	Part Number	Control Ratio	Adjustment Style	Adjustable Range	Preset Pressure	Housing	Seal Material	Price	Action

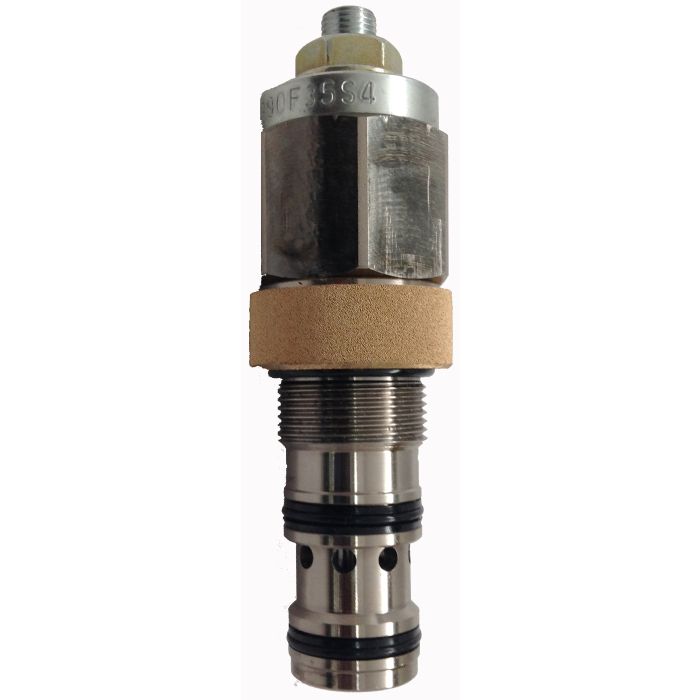

1CEB90F35S4 1CEB90 Series Cartridge Valve	406AA00020A	4:1	Screw adjustment	2900 - 5075	3000	None	Nitrile

Product Questions & Answers (1)

Question by: Dustin W on Feb 18, 2026, 12:23 PM

Reckon this counterbalance valve would work okay on my crane? Just wanna make sure it'll hold up.

Answer by: Customer Support on Feb 19, 2026, 8:44 PM

Application-wise, these overcenter valves are indeed used for cranes, and they're designed to provide static and dynamic load control. They supply a counterbalance pressure to the actuator, so they should help prevent any runaway issues in case of a hose burst.
