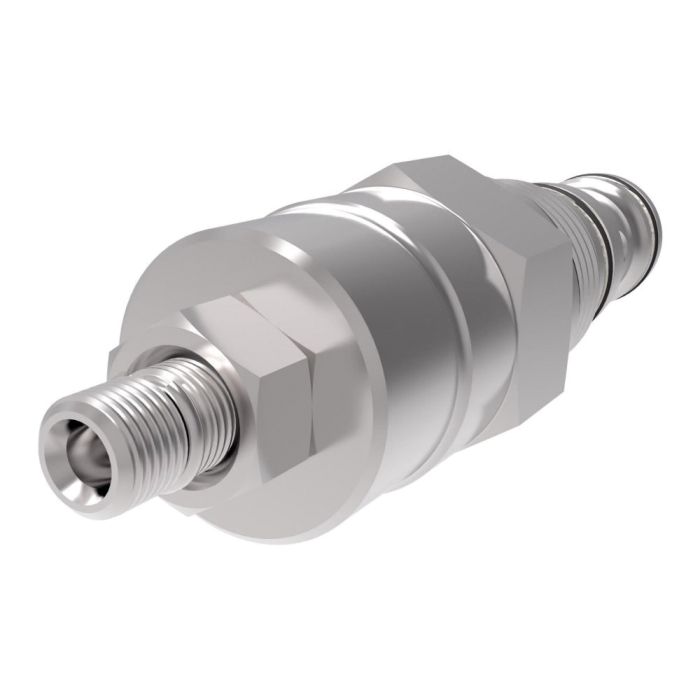

1CEV90 Series Counterbalance Cartridge Valve, 1015 - 3265 PSI (Factory Setting At 1450.00), Screw adjustment, 4:1 Pilot Ratio

Description & Features

The 1CEV90 Series Counterbalance Cartridge Valve offers precise control making it ideal for unidirectional and bidirectional load applications such as harvesters and refuse haulers. This valve integrates a pilot assisted relief with check to regulate flow ensuring static and dynamic load control.

With a pressure rating of up to 4000 PSI the valve is designed for critical applications requiring reliable performance. The screw adjustment allows for fine-tuning within a range of 1015 to 3265 PSI with a factory setting of 1450 PSI.

Featuring a 4:1 pilot ratio this device is particularly well-suited for installations where load variance and structural instability need to be controlled. The valve also ensures zero leakage at 0.25 cc/min maintaining system integrity.

The valve is manufactured by Danfoss Power Solutions known for quality and reliability in hydraulic components. The recommended filtration level is 18/16/13 microns ensuring long-lasting performance in demanding environments. The nitrile seal material and temperature range of -22F to +194F make it versatile for various industrial settings.

Model Number: 1CEV90F20S4

Supplier Part Number: 406AA02959A

Specifications

Brand Char-Lynn®	Actuator Type Manual	Adjustment Style Screw Adjustment	Dimensions 4.541 in L x 1.259 in W x 1.259 in H	Disc Material Nitrile	grp Cartridge Model 1CEV90, Sold Separately	grp Recommended Filtration 18/13	Installation Type Screw-In Cartridge	Model 1CEV90F20S4	Number of Housing Ports 3	Number of Ports/Ways 3-Way	Number of Valve Ports 3	Pilot Ratio 4:1	Seal Material Nitrile	Seat Material Nitrile	Series 1CEV90 Series	Sg Back Pressure Overcenter Valves Should Not Be Subjected to Back Pressure, As This Will Affect Performance and Can Cause Unstable Operation, If Back Pressure Cannot Be Avoided, As An Option, A Vented Spring Cavity Design Should Be Selected	Softgoods Material Nitrile	Style Pilot Assisted Relief with Check

Similar Products

Model Number	Part Number	Control Ratio	Adjustment Style	Adjustable Range	Preset Pressure	Housing	Seal Material	Price	Action
1CEV90F35S8 1CEV90 Series Cartridge Valve	406AA02964A	8:1	Screw adjustment	1450 - 5076	2900	None	Nitrile

Product Questions & Answers (2)

Question by: Duane S on Jun 18, 2025, 5:30 PM

got a load that wants to creep down on a cylinder, is this the kind of valve that’ll hold it and still let it move smooth when you command it?

Answer by: Customer Support on Jun 20, 2025, 6:57 AM

For holding and controlling an overrunning load, the 1CEV90 overcenter style counterbalance does that job by combining a check section with a pilot assisted relief section. The check lets free flow into the actuator, then it holds and locks the load against movement, and the pilot function allows controlled lowering or motion when pilot pressure is applied so the load does not run away.

Question by: Roy P on Dec 8, 2025, 9:36 PM

Will this fit a standard C-12-3S cavity?

Answer by: Customer Support on Dec 10, 2025, 11:43 AM

This cartridge valve itself is a 1CEV90 model, and it's meant to be used with a C-12-3S cavity housing. That housing is sold separately.
