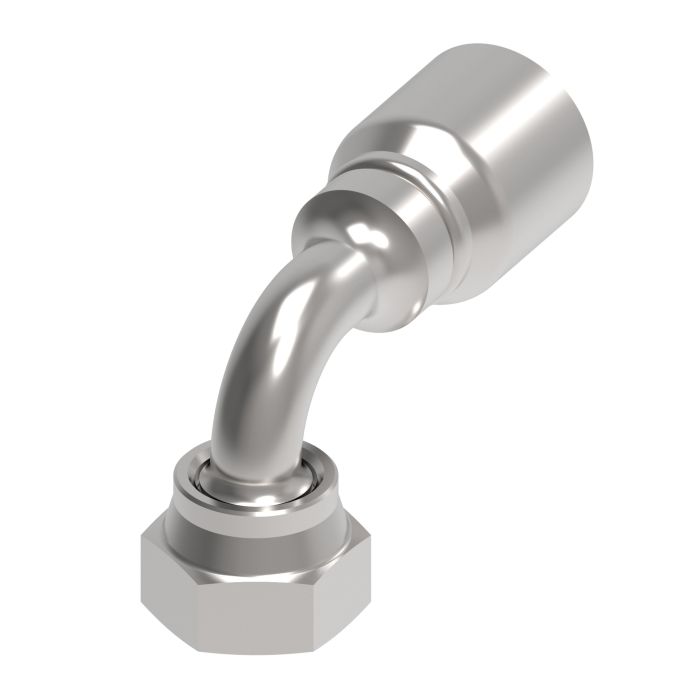

main product photo

Ftng (perm), ORS 16-90

Ask A Question

Description & Features

Designed for durability and reliability, the Eaton Aeroquip 1G Series Crimp Hose Fittings Female ORS Swivel 90˚ Short Drop Elbow ensures optimal performance in hydraulic systems. Crafted with Dura-Kote plating, it offers superior corrosion resistance, extending the lifespan of your hose assemblies. Its innovative design aims to maximize system uptime, making it a preferred choice for industrial applications.

With a hose dash size of -16 and a drop dimension of 2.2100, this fitting is engineered to meet demanding specifications. The female ORS connection on one end and compatibility with line, hose, or tube on the other, provide versatility in various setups. Measuring 1.61 inches in width, this Aeroquip fitting is a testament to quality and precision engineering.

SKU: 1G16FRB16

Supplier Part Number (MPN): 1G16FRB16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.96 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.87 in
Dimensions
3.96 in L
Drop Dimensions
2.21 in
End Connection Torque
92 to 100 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
GH585 and GH586 Series Hoses
Hex Size
1.614 in
Hose Dash Size
16
Inside Diameter
0.78 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant
Thread Size
1-7/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Dwayne H on May 27, 2025, 11:37 AM
Reckon this fitting would hold up okay in a hydraulic system running outdoors?
Answer by: Customer Support on May 28, 2025, 9:50 PM
Dura-Kote plating on this Eaton Aeroquip fitting provides superior corrosion resistance, so it should offer good protection for outdoor hydraulic systems.
