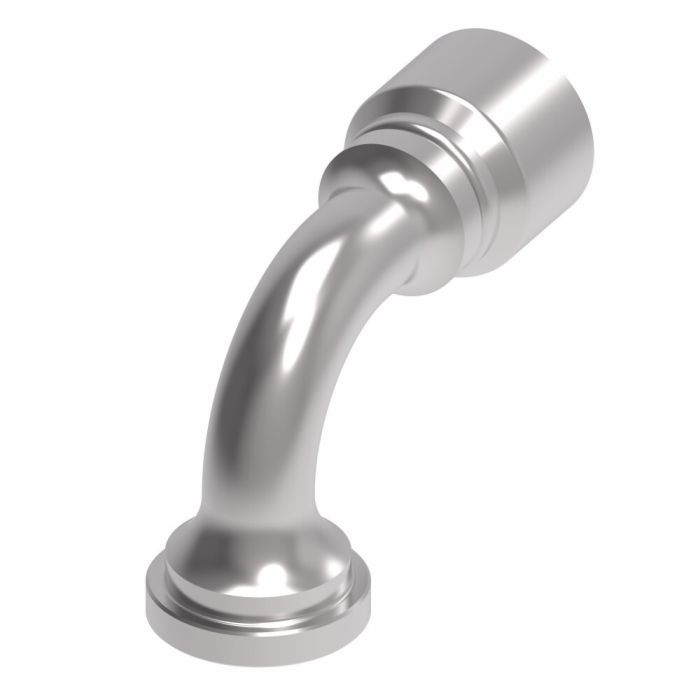

main product photo

Aeroquip Field Crimp - Code FC

Ask A Question

Description & Features

A -24 dash size, SAE Code 61 flanged fitting in carbon steel construction, this fitting is configured as a 90-degree elbow with a flanged end on one side and a hose/line connection on the other. It carries a drop dimension of 4.5 inches, making it suitable for installations where routing clearance is a key consideration.

The Aeroquip Field Crimp - Code FC is part of Aeroquip's 1G Series crimp hose fitting line. Dura-Kote plating provides corrosion resistance suited to demanding hydraulic environments, while the system-engineered design supports extended hose assembly service life and consistent uptime. Carbon steel construction delivers the durability expected in high-cycle industrial hydraulic applications.

SKU: 1G32FLB24

Supplier Part Number (MPN): 1G32FLB24

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
7 in
Compatible Hose ID
1-1/2 in
Connection Size 1
1-1/2 in
Connection Size 2
2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
5.45 in
Dimensions
8.67 in L x 2.81 in W x 5.62 in H
Drop Dimensions
4-1/2 in
End Size 1
2.81 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hose Dash Size
24
Inside Diameter
1.26 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Floyd T on Apr 6, 2026, 11:23 AM
What's the drop on this elbow? Need to make sure it fits my setup.
Answer by: Customer Support on Apr 7, 2026, 5:56 PM
The drop dimension on this 90-degree elbow is 4.5 inches.
