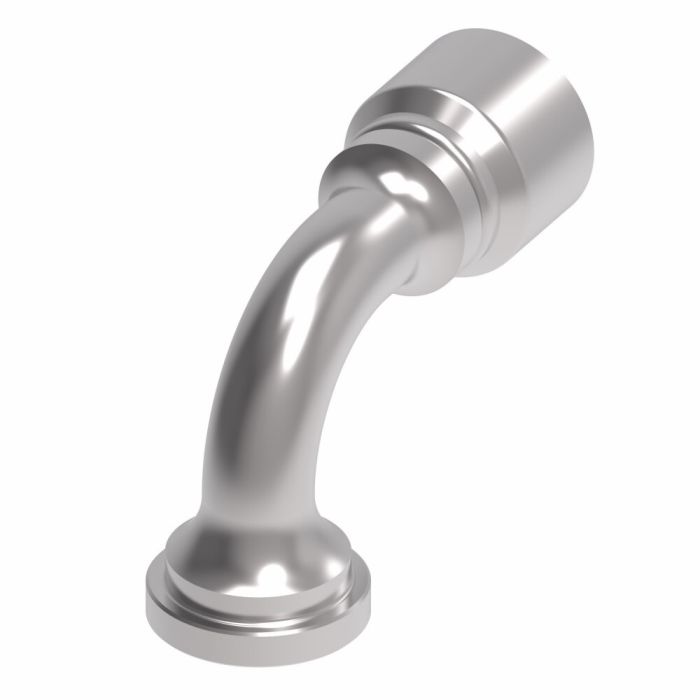

Aeroquip Field Crimp - Code FC

Ask A Question

Description & Features

The Aeroquip Field Crimp - Code FC by Danfoss Power Solutions offers advanced engineering to optimize hose assembly lifespan. Featuring Dura-Kote plating, it ensures superior corrosion resistance, providing a reliable solution for critical applications.

This product integrates an innovative design, delivering consistent performance and increased downtime prevention. Crafted from carbon steel, it maintains durability under high-stress conditions.

Specifically designed for hose fittings with a -32 hose dash size, it includes a flanged end type 1 and a line/hose/tube end type 2. It has a drop dimension of 4.5000 and a product width of 2.81.

Supplier Part Number: 1G32FLB32

MPN: 1G32FLB32

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
7.54 in
Compatible Hose ID
2 in
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Split Flanged
Construction Style
Crimp
Cut-Off Factor
5.41 in
Dimensions
8.94 in L x 2.81 in W x 5.87 in H
Drop Dimensions
4-1/2 in
End Size 1
2.81 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
2583, 2661, FC318, FC466, FC498, FC598, FC619 and FC699 Series Hoses
Hose Dash Size
32
Inside Diameter
1-3/4 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (4)

Question by: Roger F on Jul 3, 2025, 7:08 PM
Trying to match up a fitting we’ve already got, is this one for a -32 hose and a flanged end?
Answer by: Customer Support on Jul 5, 2025, 6:28 AM
The key callouts on this one are a hose dash size of -32 and End Type 1 listed as Flanged, with End Type 2 listed as Line/Hose/Tube.
Question by: Lee C on Dec 23, 2025, 12:50 PM
What size hose does this fitting work with? Just want to make sure I'm gettin' the right one.
Answer by: Customer Support on Dec 24, 2025, 8:25 PM
It's designed for hoses with a -32 hose dash size, according to the specs.
Question by: Warren T on Aug 11, 2025, 8:29 AM
fitting's got a -32 hose dash size on it -- does that flanged end work for standard line connections or is this more of a specialized setup?
Answer by: Customer Support on Aug 12, 2025, 10:17 AM
The flanged end on side one pairs with a line, hose, or tube connection on side two, so it bridges those two end types in a single assembly. That combination is pretty common in high-pressure hydraulic runs where you need a secure flange attachment on one end and flexibility on the other. The carbon steel construction holds up well under the kind of stress those connections typically see.
Question by: Brett Y on Dec 11, 2025, 12:15 PM
trying to swap a fitting on a -32 hose, is this one actually meant for that dash size
Answer by: Customer Support on Dec 13, 2025, 7:46 AM
It is specifically built for a -32 hose dash size, so it matches that hose size requirement.
