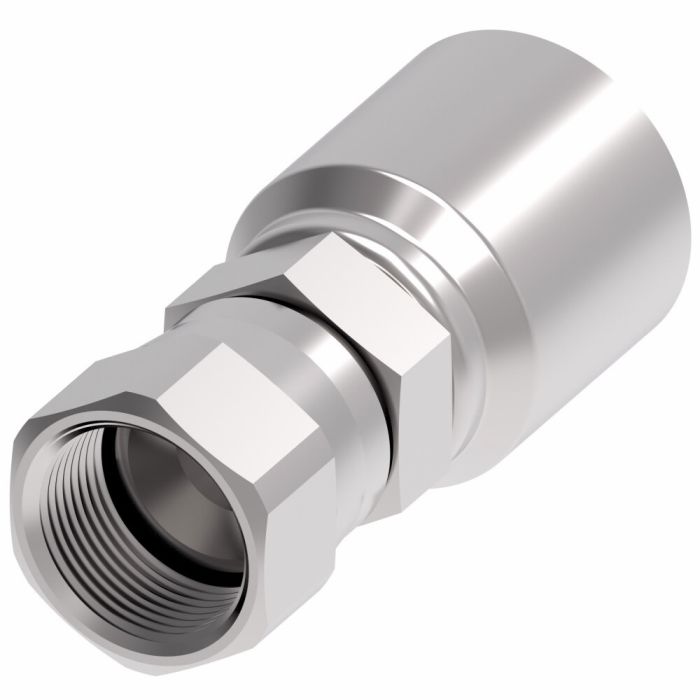

main product photo

Aeroquip Fitting (Perm)SAE 37 R4

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions the Aeroquip Fitting (Perm)SAE 37 R4 offers reliability with its Dura-Kote plating ensuring superior corrosion resistance. This innovative fitting is designed to deliver performance and maximize uptime catering to specific industrial needs.

Constructed from carbon steel it features a female SAE 37 end type and is engineered to extend the life of hose assemblies. With a hose dash size of -8 and a width of 1.25 inches this fitting is meticulously crafted for efficiency.

Its system engineered design contributes to prolonged hose assembly life positioning it as an essential component in various applications. This product aligns with the Hose Fittings ICC category and adheres to EAR99 ECCN compliance.

Supplier Part Number: 1GA12FJ8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.488 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.559 in
Dimensions
2.73 in L
End Connection Torque
79 to 87 lb-ft
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2583, 2661, FC318, FC466, FC498, FC598, FC619 and FC699 Series Hoses
Hex Size
1-1/4 x 1 in
Hose Dash Size
08
Inside Diameter
0.38 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Terry S on May 23, 2025, 5:11 PM
got a -8 hose, is this the right permanent end for it or am i mixing stuff up
Answer by: Customer Support on May 25, 2025, 8:03 AM
The key callout here is the hose dash size. This fitting is built for a -8 hose and it has a female SAE 37 end, so it matches that hose size and that end style.
