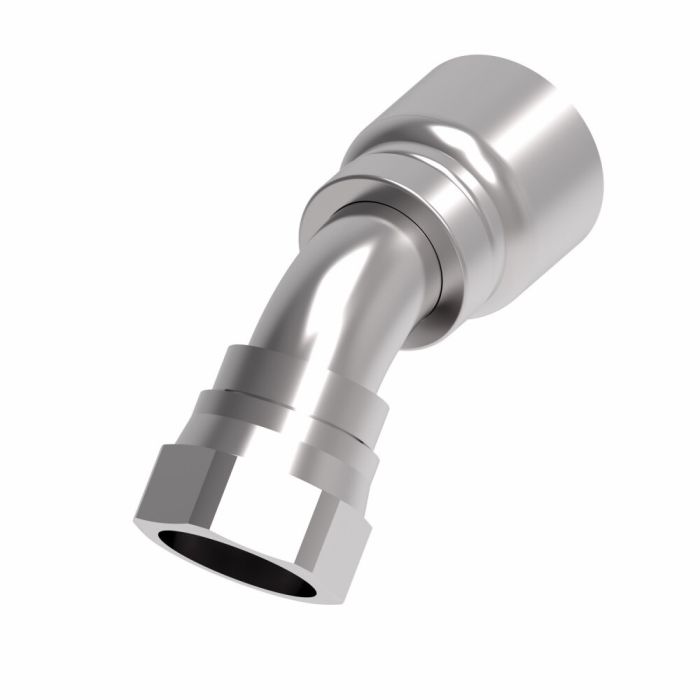

main product photo

Aeroquip Field Crimp - Code FC

Ask A Question

Description & Features

Experience exceptional durability with DANFOSS Power Solutions' Aeroquip Field Crimp - Code FC engineered to extend hose assembly life. Featuring Dura-Kote plating this innovative product offers superior corrosion resistance ensuring long-lasting performance. Designed without the need for calibration this hose fitting simplifies maintenance.

With an end type of female SAE 37 and a hose dash size of -16 this fitting is suitable for complex hydraulic applications. Constructed from carbon steel it promises reliable functionality in demanding environments. The Aeroquip Field Crimp delivers maximum uptime and is system-engineered for optimal efficiency.

Supplier Part Number: 1GA16FJA16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.48 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.389 in
Drop Dimensions
1.066 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
2583, 2661, FC318, FC466, FC498, FC598, FC619 and FC699 Series Hoses
Hex Size
1-1/2 in
Hose Dash Size
16
Inside Diameter
0.76 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Lyle T on Jun 1, 2025, 3:55 PM
What size hose does this Aeroquip fitting work with? I'm using a -16.
Answer by: Customer Support on Jun 3, 2025, 3:09 PM
This Aeroquip field crimp fitting is made for a hose dash size of -16. It'll fit right up with what you're using.
