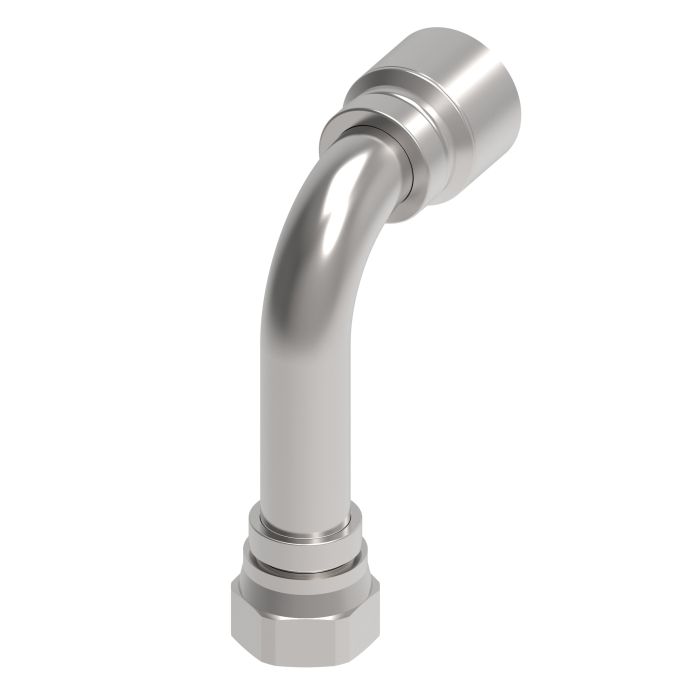

main product photo

AEROQUIP FITTING PERM SAE 37 R4

Ask A Question

Description & Features

This Eaton Aeroquip 1G Series crimp hose fitting features a female JIC/SAE 37° swivel and a 90° long drop elbow, designed for reliable connections in hydraulic systems. The AEROQUIP FITTING PERM SAE 37 R4 is engineered to extend hose assembly life, ensuring optimal performance and maximum uptime.

The fitting's Dura-Kote plating provides superior corrosion resistance, enhancing durability in demanding industrial environments. With a drop dimension of 4.5800 inches and a width of 1.5 inches, this Aeroquip fitting is suitable for hose dash size -16.

SKU: 1GA16FJC16

Supplier Part Number (MPN): 1GA16FJC16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.291 in
Compatible Hose ID
1 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
2.2 in
Drop Dimensions
4.582 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
Hex Size
1-1/2 in
Hose Dash Size
16
Inside Diameter
0.76 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Gary H on Jul 30, 2025, 6:55 AM
Hey, will this fitting hold up if its connected to a hydraulic system that runs pretty much non-stop?
Answer by: Customer Support on Jul 31, 2025, 7:29 AM
Dura-Kote plating gives this Aeroquip fitting good corrosion resistance, so it should last even with continuous use in demanding industrial environments.
