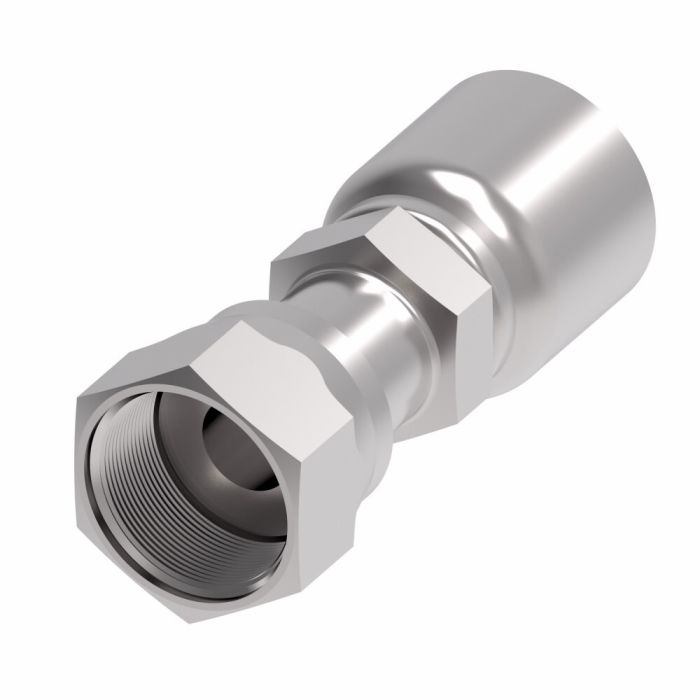

Aeroquip Field Crimp - Code FC

Ask A Question

Description & Features

Designed for use with -12 dash size hose, this carbon steel female ORS swivel fitting is part of the Aeroquip 1G Series Field Crimp line. The swivel end allows for easier installation and alignment during assembly, while the ORS (O-Ring Face Seal) connection type provides a reliable, leak-resistant interface suited to hydraulic systems operating under demanding conditions.

The Aeroquip Field Crimp - Code FC carries Dura-Kote plating, which provides strong resistance to corrosion in harsh industrial environments. With a hex size of 1.375 and an overall width of 1.88 inches, the fitting is system-engineered to extend hose assembly service life and maintain performance over repeated use cycles. Carbon steel construction supports durability across a range of hydraulic fluid media and working conditions.

SKU: 1GA16FR12

Supplier Part Number (MPN): 1GA16FR12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.72 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
1.79 in
Dimensions
2.98 in L
End Connection Torque
92 to 100 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
2583, 2661, FC318, FC466, FC498, FC598, FC619, FC699, GH585 and GH586 Series Hoses
Hex Size
1-5/8 x 1-3/8 in
Hose Dash Size
12
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant
Thread Size
1-7/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Brett M on May 26, 2025, 8:59 PM
Is this the right fitting if I'm dealing with some pretty harsh conditions and need something that won't corrode easily?
Answer by: Customer Support on May 28, 2025, 1:19 PM
Dura-Kote plating on this Aeroquip fitting provides strong corrosion resistance, making it suitable for harsh industrial environments where hydraulic systems are exposed to corrosive elements.
