Fitting (Perm) SAE 37 R4

Description & Features

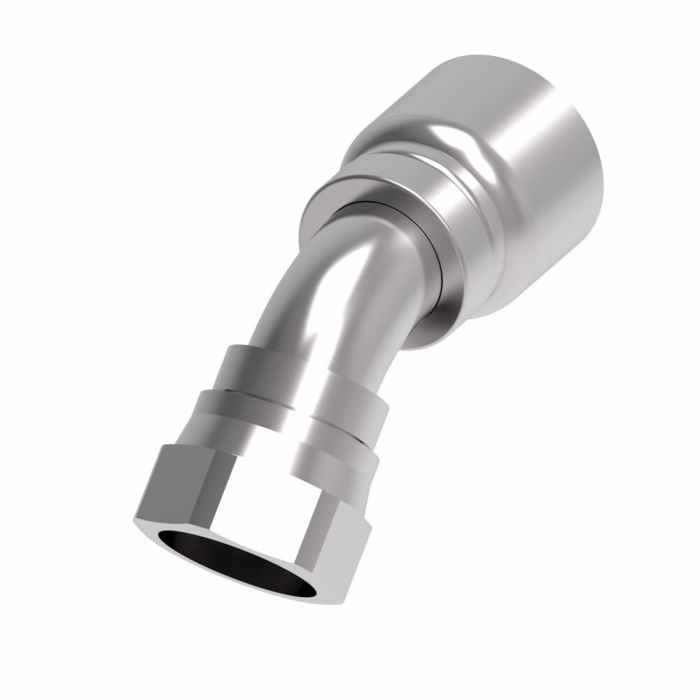

Designed for -24 dash size hose assemblies, this carbon steel swivel fitting connects a female SAE 37° (JIC) end to a hose or line at a 45° elbow angle, making it well-suited for routing in tight or angled installations. The Fitting (Perm) SAE 37 R4 is part of the Aeroquip 1G Series of crimp hose fittings, engineered to work within a system-level approach that supports extended hose assembly service life and reliable uptime.

Dura-Kote plating provides corrosion resistance suited to demanding hydraulic environments. With a product width of 2.59 inches and a drop dimension of 1.89 inches, the fitting accommodates space-sensitive installations where precise geometry matters. The female JIC swivel design allows rotational positioning during assembly without disturbing the hose orientation.

SKU: 1GA24FJA24

Supplier Part Number (MPN): 1GA24FJA24

Specifications

Alternate Part Numbers Alternate Part Number MINO-00015F58391	Drop Dimension 1.89	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 SAE 37	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon steel	Product Width 2.59	Sub Brand Aeroquip	Supplier Part Number 1GA24FJA24	Product Weight 0.01 lbs

Product Questions & Answers (1)

Question by: Jean H on Mar 19, 2026, 3:31 PM

Is this fitting something I could use for a tight 45-degree turn in my hydraulic system?

Answer by: Customer Support on Mar 21, 2026, 6:48 AM

Real-world usage indicates that this fitting's 45-degree elbow and swivel design are suited for routing hoses in tight spaces where precise angles are needed.
