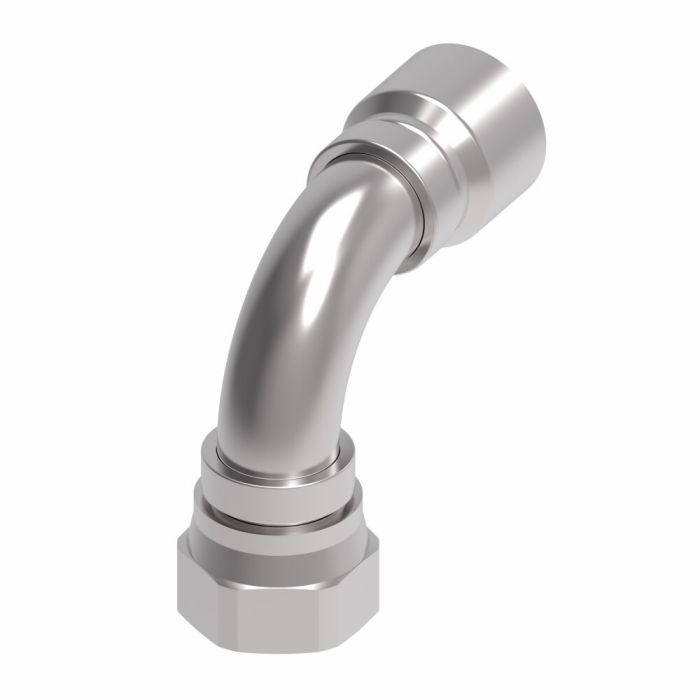

Designed for high-demand hydraulic hose assemblies, this -24 dash size female JIC/SAE 37° swivel 90° elbow is a carbon steel crimp fitting built to Aeroquip's 1G Series standards. The 90° elbow geometry and swivel end provide routing flexibility in tight installations where fixed fittings would be impractical.
The Fitting (Perm) SAE 37 R4 features Dura-Kote plating, which provides strong corrosion resistance suited to industrial environments. The system-engineered design is intended to extend hose assembly service life and support consistent uptime in hydraulic circuits. With a product width of 2.25 inches and a drop dimension of 3.17 inches, this fitting is sized for larger-bore hose connections where a secure, permanent crimp termination is required.
SKU: 1GA24FJB24
Supplier Part Number (MPN): 1GA24FJB24
|
Alternate Part Numbers
MINO-00015X20693
|
Drop Dimension
3.17
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
SAE 37
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-24
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon steel
|
Product Width
2.25
|
Sub Brand
Aeroquip
|
Supplier Part Number
1GA24FJB24
|
Product Weight
2.10 lbs
|
