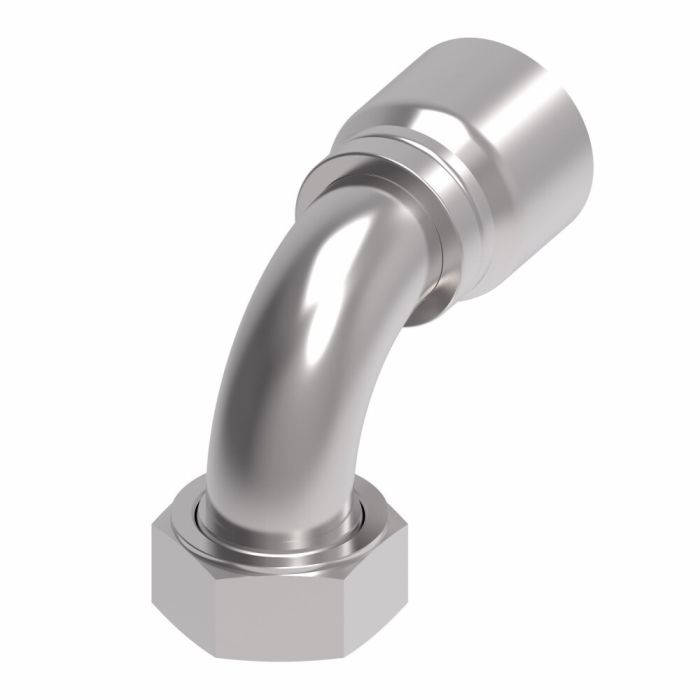

main product photo

Aeroquip Field Crimp - Code FC

Ask A Question

Description & Features

Designed for -24 hose dash size applications, this carbon steel female ORS swivel fitting connects at a 90-degree short drop elbow angle, making it well-suited for tight routing situations where straight connections are not practical. The swivel end allows for rotational adjustment during assembly, reducing stress on the hose line.

The Aeroquip Field Crimp - Code Fc fitting features Dura-Kote plating, which provides strong corrosion resistance in demanding hydraulic environments. Engineered as part of Aeroquip's 1G Series crimp system, it is built to extend hose assembly service life and support consistent performance under sustained hydraulic duty. The item weighs 3.89 lb and measures 2.59 inches in width, with a drop dimension of 2.70 inches.

SKU: 1GA24FRB24

Supplier Part Number (MPN): 1GA24FRB24

Alternate Part Numbers: C1HZ11

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.39 in
Compatible Hose ID
1-1/2 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Crimp
Cut-Off Factor
2.81 in
Dimensions
5.75 in L x 2.59 in W x 4.41 in H
Drop Dimensions
2.7 in
End Connection Torque
150 to 165 lb-ft
End Gender 1
Female
End Size 1
2 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
2583, 2661, FC318, FC466, FC498, FC598, FC619 and FC699 Series Hoses
Hex Size
2-1/4 in
Hose Dash Size
24
Inside Diameter
1.26 in
Material
Steel
Material Construction
Carbon Steel
Series
1G Series
Thread Sealant
Without Thread Sealant
Thread Size
2-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Freddie L on Jan 18, 2026, 3:00 PM
I'm seeing this is for a -24 hose dash size. What does that actually mean in terms of, like, fitting it to something?
Answer by: Customer Support on Jan 19, 2026, 7:55 PM
That -24 refers to the hose's inside diameter, measured in 1/16-inch increments. So, a -24 hose has an internal diameter of 1.5 inches. This fitting is designed to properly mate with that size hose.
