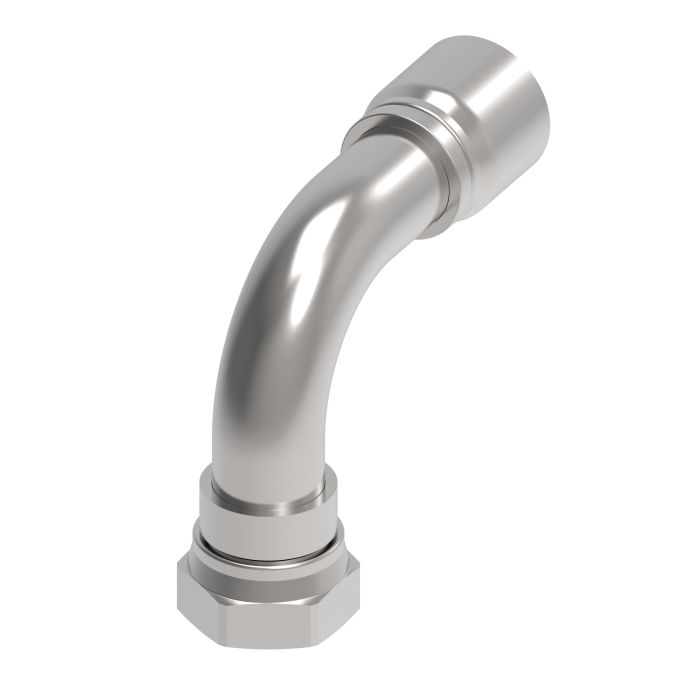

Ftng (perm) SAE 37 R4

Ask A Question

Description & Features

Optimize your hydraulic systems with the Aeroquip SAE 37 R4 permanent fitting, designed for superior performance and reliability. This female JIC/SAE 37˚ swivel fitting features a 90˚ elbow configuration, ideal for connecting hoses, tubes, and lines in industrial applications. Constructed from durable carbon steel, it ensures longevity even in demanding environments.

The innovative design of this fitting, combined with Dura-Kote plating, offers exceptional corrosion resistance, significantly extending the life of your hose assemblies. With a drop dimension of 5.5400 and a 2.88-inch width, it's engineered to deliver maximum uptime and seamless integration into your existing setup. Trust in Aeroquip's system-engineered approach to enhance the performance of your hydraulic assemblies.

SKU: 1GA32FJB32

Supplier Part Number (MPN): 1GA32FJB32

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
7.55 in
Angle Shape
90 deg
Compatible Hose ID
2 in
Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Female 37 deg JIC Swivel
Connection Type 2
Hose
Construction Style
Crimp
Cut-Off Factor
5.42 in
Dimensions
7.55 in L
Drop Dimensions
5.54 in
End Connection Torque
245 to 258 ft-lb
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
2583, 2661, FC318, FC466, FC498, FC598, FC619 and FC699 Series Hoses
Hex Size
2.87 in
Hose Dash Size
32
Inside Diameter
1-3/4 in
Material
Steel
Material Construction
Carbon Steel
Series
1G OTC Series
Thread Sealant
Without Thread Sealant
Thread Size
2-1/2-12

Product Questions & Answers (1)

Question by: Brent H on Oct 16, 2025, 9:00 AM
Can this fitting handle the weather if it's used outside on equipment?
Answer by: Customer Support on Oct 18, 2025, 6:21 AM
Dura-Kote plating gives this fitting superior corrosion resistance, which should help it last longer, even outdoors.
