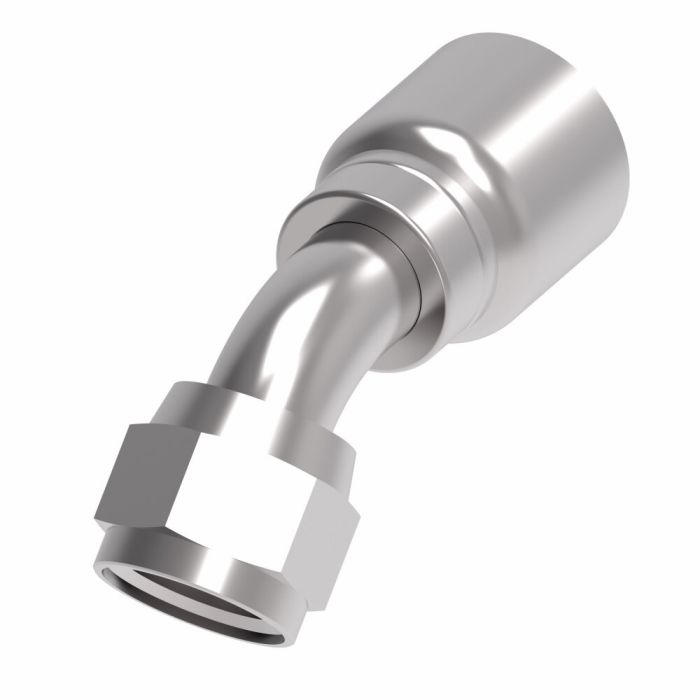

Designed for use with -6 dash size hose, the Aeroquip Field Crimp - Code FC is a female SAE 37° swivel fitting configured at a 45° elbow angle. Constructed from carbon steel with Dura-Kote plating, it provides corrosion resistance suited to demanding hydraulic environments. The 9/16-inch end size and 0.39-inch drop dimension position this fitting accurately within tight routing configurations.
Engineered as part of Aeroquip's 1G Series crimp fitting system, this assembly is designed to extend hose assembly service life and support maximum uptime in hydraulic circuits. The swivel end allows for ease of alignment during installation without twisting the hose, reducing stress at the connection point. Weighing 0.15 lb, it is a compact fitting suitable for a range of mobile and industrial hydraulic applications.
SKU: 1GA6FJA6
Supplier Part Number (MPN): 1GA6FJA6
|
Alternate Part Numbers
MINO-00015X04090
|
Drop Dimension
0.39
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.56
|
End Type 1
SAE 37
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon steel
|
Product Width
0.91
|
Sub Brand
Aeroquip
|
Supplier Part Number
1GA6FJA6
|
Product Weight
0.15 lbs
|
