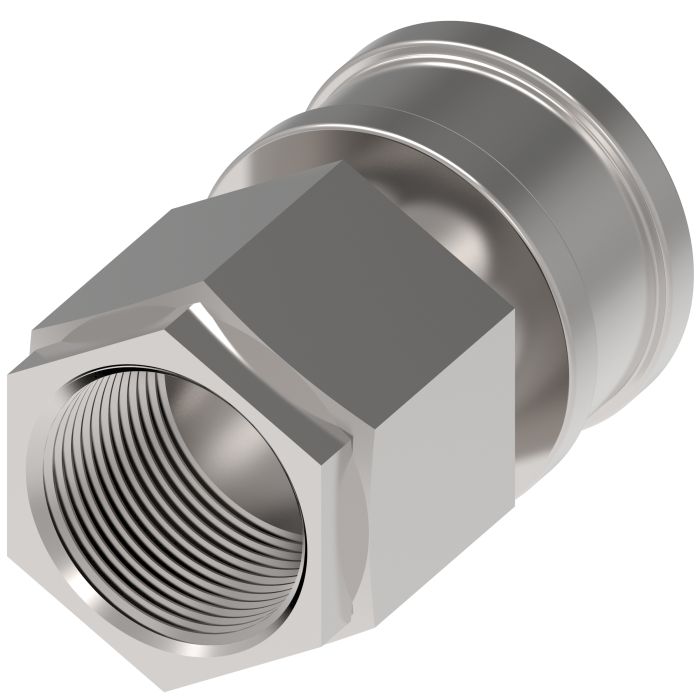

A female half socket with push-to-connect inlet and 1/8 inch NPTF port, the Danfoss / Eaton Cplng HK Series coupling is designed for quick fluid line connection and disconnection without special tools. Built from carbon steel with FKM seals, it supports a working temperature range starting at -15°F and delivers a flow rate of 0.6 gallons per minute through a ball lock internal mechanism.
Certified to ISO 7241-1 Series B and exceeding ISO 16028 operating pressures, this Hansen sub-brand coupling is suited for a broad range of fluid transfer applications across agriculture, construction, oil and gas, aerospace, military, transportation, and general industry. The two-way valve configuration and female-to-female end arrangement make it a versatile fit for hydraulic tool circuits and mobile equipment lines alike.
SKU: 1H11143
Supplier Part Number (MPN): 1H11143
|
Alternate Part Numbers
MINO-00015X04111
|
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
|
Certifications
ISO 7241-1 Series B
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Gender 2
13555
|
End Size 2
0.13
|
End Type 1
Push to Connect
|
End Type 2
NPTF
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
0.6 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-15
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Port Size
1/8
|
Product Material
Carbon Steel
|
Product Width
0.98
|
Safety locking Mechanism
None
|
Seal Material
FKM
|
Sub Brand
Hansen
|
Supplier Part Number
1H11143
|
Valve Type
2 way
|
Product Weight
0.17 lbs
|
