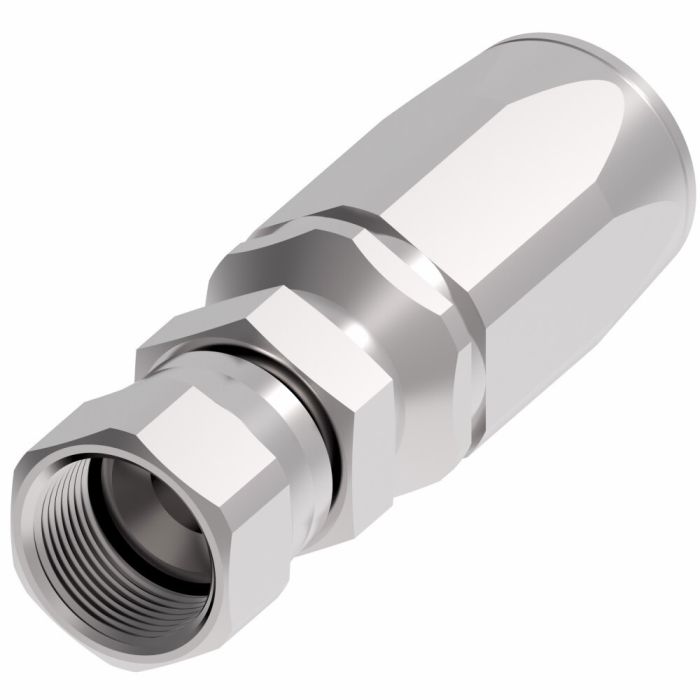

Aeroquip M/M 1W Reusable Fitting

Ask A Question

Description & Features

The Aeroquip M/M 1W Reusable Fitting is designed for a comprehensive spectrum of industrial applications ensuring reliability with its high durability. Crafted from carbon steel this fitting is part of the Danfoss / Eaton 1R Series Reusable Hose Fittings offering a JIC straight configuration.

With a female SAE 37 end type and a hose dash size of -4 it simplifies assembly processes and enhances production efficiency. This fitting measuring 0.75 inches in width guarantees a secure connection and is recognized under ECCN EAR99.

The fitting's robust construction minimizes downtime and maintenance making it an optimal choice for demanding environments. This component does not include additional accessories such as batteries blades or cases ensuring straightforward and focused functionality.

Supplier Part Number: 1RA4FJ4

MPN: 1RA4FJ4

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.6 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.93 in
Dimensions
2.6 in L
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Size 1
7/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
EC115, EC118, GH681 and H180 Series Hoses
Hex Size
0.563 in
Hose Dash Size
04
Inside Diameter
0.17 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
1R Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Product Questions & Answers (2)

Question by: Phil W on Mar 5, 2026, 7:10 AM
trying to match up a reusable fitting i’ve got on a -4 hose, is this one the JIC straight with the female SAE 37 end?
Answer by: Customer Support on Mar 6, 2026, 2:29 PM
For a -4 hose, this one lines up with the Danfoss and Eaton 1R Series reusable hose fittings in a JIC straight configuration, and it uses a female SAE 37 end on one side.
Question by: Todd C on Jun 10, 2025, 12:54 PM
What kind of hose is this fitting supposed to work with, and is the -4 dash size the only option here?
Answer by: Customer Support on Jun 11, 2025, 2:43 PM
Carbon steel construction and a -4 hose dash size puts this fitting in line with standard small-bore hydraulic hose applications. The -4 dash size corresponds to a quarter-inch nominal hose ID, so it's built for that specific hose size. If you need a different dash size, that would be a separate part number in the 1R Series lineup.
