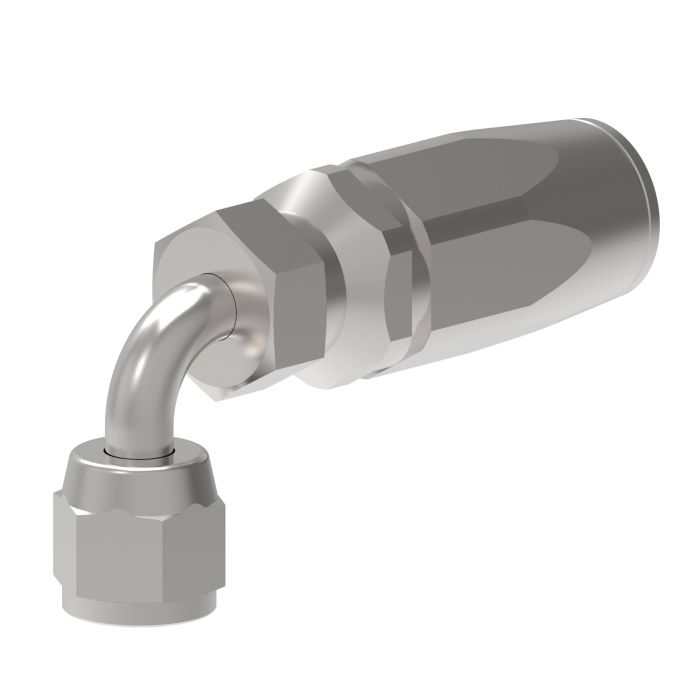

main product photo

Aeroquip M/M 1W Reusable Fitting

Ask A Question

Description & Features

A reusable fitting designed for JIC 90 short drop configurations, the Aeroquip M/M 1W Reusable Fitting offers a SAE 37° flare connection on one end paired with a line/hose/tube end on the other. Sized for a -4 hose dash size with a 7/16 in. end diameter and a 0.75 in. hex, it is constructed from carbon steel for reliable performance in demanding hydraulic applications.

As a reusable fitting assembly, it is well suited to applications where assembly efficiency matters, the design supports reduced assembly times without sacrificing connection integrity. The 0.68 in. drop dimension makes it a practical choice where clearance is a consideration. Compatible with a wide range of hose and line configurations, it fits into hydraulic systems where a dependable, field-reusable JIC fitting is required.

SKU: 1RA4FJB4

Supplier Part Number (MPN): 1RA4FJB4

Specifications

a Dimensions
2.36 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.693 in
Drop Dimensions
0.68 in
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Size 1
7/16 in
Finish
Dura-Kote™
Fitting Type
90 deg Elbow
For Use With
EC115, EC118, GH681 and H180 Series Hoses
Hex Size
0.563 x 0.688 in
Hose Dash Size
04
Inside Diameter
0.15 in
Material
Steel
Material Construction
Carbon Steel
Segment Code
C
Series
1R Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Floyd W on Apr 21, 2025, 3:17 PM
Is this fitting somethin' I can put together myself out in the field, or does it need special tools?
Answer by: Customer Support on Apr 23, 2025, 10:21 AM
It's designed as a reusable fitting assembly, meaning you can put it together in the field. This design cuts down on assembly time without giving up a solid connection.
