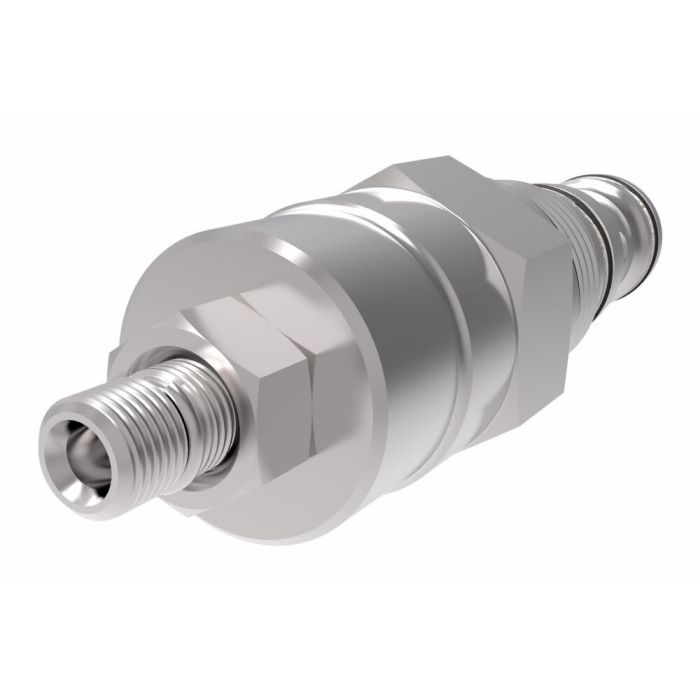

main product photo

1SE90 Series Counterbalance Cartridge Valve, 2537-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 4:1 Pilot Ratio

Ask A Question

Description & Features

Designed for load control in mobile and industrial hydraulic circuits, the 1SE90 Series Counterbalance Cartridge Valve is a three-port, externally piloted, screw-in cartridge valve suited for harvesters, refuse haulers, and similar demanding applications. It prevents load runaway and provides hose failure safety by metering flow as it passes the poppet, ensuring gradual, controlled movement under varying load conditions.

Factory set at 3,045 PSI within a working range of 2,537–5,075 PSI, this valve handles up to 23 GPM and supports a maximum load-induced pressure of 4,000 PSI. The 4:1 pilot ratio makes it well suited for applications where the load remains relatively constant. Adjustment is via screw with locknut, and the nitrile seal construction supports an operating temperature range of -22°F to +194°F. Installation requires a machined T2A Sun cavity; torque to 44 ft-lbs in any mounting position. Recommended filtration is ISO level 18/16/13 microns.

SKU: 406AA00054A

Supplier Part Number (MPN): 406AA00054A

Alternate Part Numbers: 1SE90F35S4, C1JZ85

Specifications

Adjustment Style
Screw with Locknut
Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Housing
None
Installation Type
Screw-in Cartridge
Leakage
0.25 cc/min
Maximum Load Induced Pressure
270
Maximum Relief Pressure
350
Number of Housing Ports
3
Number of Valve Ports
3
Pilot Ratio
4:1
Pressure Range (psi)
2537-5075
Pressure Setting
3045
Recommended Filtration Level
18/16/13 microns
Seal Material
Nitrile
Seal Type
Nitrile
Special Features
None
Style
Pilot assisted relief with check
Supplier Part Number
406AA00054A
Alternate Part Numbers
Alternate Part Number 1SE90F35S4, Alternate Part Number C1JZ85, Alternate Part Number MINO-00569X03156
Product Weight
0.92 lbs

Related Documents

Similar Products

Model Number Part Number Pilot Ratio Adjustment Style Pressure Range (psi) Pressure Setting Housing Seal Material Price Action
1SE90 Series Counterbalance Cartridge Valve, 2537-5075 PSI (Factory Setting At 3045.00), Screw with Locknut Adjustment, 4:1 Pilot Ratio

1SE90F35S4 1SE90 Series Cartridge Valve

406AA00054A

4:1

Screw with Locknut

2537-5075

3045

None

Nitrile

Product Questions & Answers (3)

Question by: Dean S on Mar 19, 2026, 7:36 PM
Can this handle the kind of pressure you get on a refuse truck, when you're compacting stuff?
Answer by: Customer Support on Mar 21, 2026, 11:20 AM
Intended uses include refuse haulers. This valve has a maximum relief pressure of 5000 psi. Just be sure your system is running within that range.
Question by: Brett C on Feb 28, 2026, 5:45 PM
what's the pressure range on this valve and can the factory setting be adjusted if I need something different for my application?
Answer by: Customer Support on Mar 2, 2026, 3:27 PM
Factory set at 3045 PSI, the adjustment range runs from 2537 up to 5075 PSI. The screw and locknut design lets you dial it in without pulling the whole unit. Just loosen the locknut, turn the screw to where you need it, and lock it back down. Worth noting that any pressure above 3000 PSI requires a steel housing, so make sure your setup accounts for that before pushing it toward the top of the range.
Question by: Lynn R on Feb 25, 2026, 1:55 PM
got a load that likes to run away on the way down, is this the kind of valve that’ll keep it in check if a hose lets go?
Answer by: Customer Support on Feb 27, 2026, 6:25 AM
Built for load control, the 1SE90 counterbalance (overcenter) cartridge meters flow out of the actuator so the load cannot overrun the pump flow. When it’s close-coupled to the actuator, it also helps stop runaway in a hose burst situation, giving load holding and hose failure safety.
