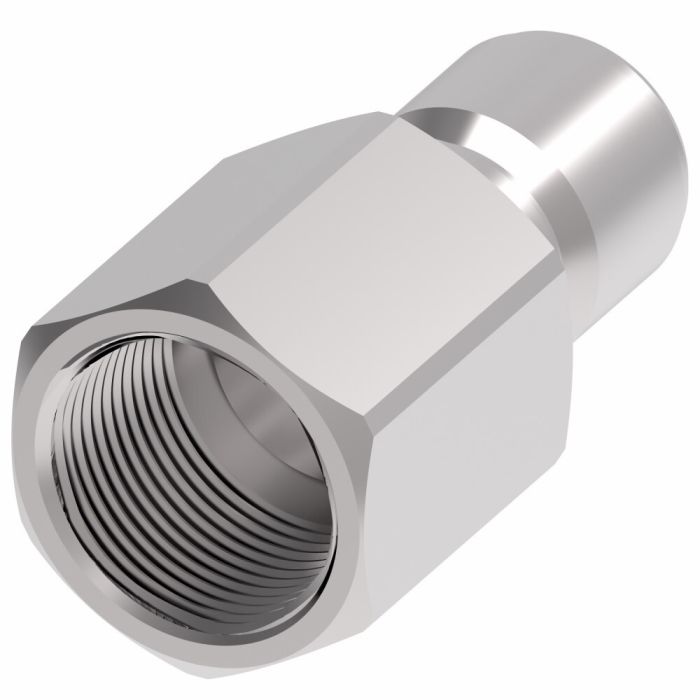

main product photo

DANFOSS / EATON/HANSEN CPLNG

Ask A Question

Description & Features

Designed for quick connect and disconnect without special tools, this carbon steel male half coupling handles fluid transfer across a wide range of demanding applications, including chemical processing, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning. The push-to-connect end pairs with a 1/8" NPTF female port, and the straight-through valve design supports a flow rate of 2.7 gallons per minute.

The Danfoss / Eaton Hansen ST Series coupling uses a ball lock internal connection mechanism and is sealed with Buna-N for reliable fluid compatibility across varied media. Rated for service down to -40°F, it exceeds ISO 16028 operating pressure requirements. The Aeroquip/Hansen sub-brand lineage reflects a well-established product family in industrial fluid transfer.

SKU: 1T11

Supplier Part Number (MPN): 1T11

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
1/8 in
Connection Size 2
1/8 in
Connection Type
FNPT, Quick-Disconnect
Connection Type 1
Female NPTF
Connection Type 2
Quick Disconnect
End Gender 1
Male
End Gender 2
Female
Fitting Type
Coupling
Hex Size
1/2 in
Internal Connection Type
Ball Lock
Item Type
Male Half
Material
Steel
Material Construction
Steel
Operating Temperature
-40 to 250 deg F
Seal Material
Buna-N
Series
ST Series
Thread Sealant
Without Thread Sealant
Thread Size
1/8-27
Valve Type
Straight Thru

Product Questions & Answers (1)

Question by: Shane C on Apr 9, 2025, 3:39 PM
Can this handle pressure washing chemicals without breaking down?
Answer by: Customer Support on Apr 11, 2025, 10:00 AM
This carbon steel coupling is suitable for chemical processing applications and uses Buna-N seals, which offer compatibility across varied media.
