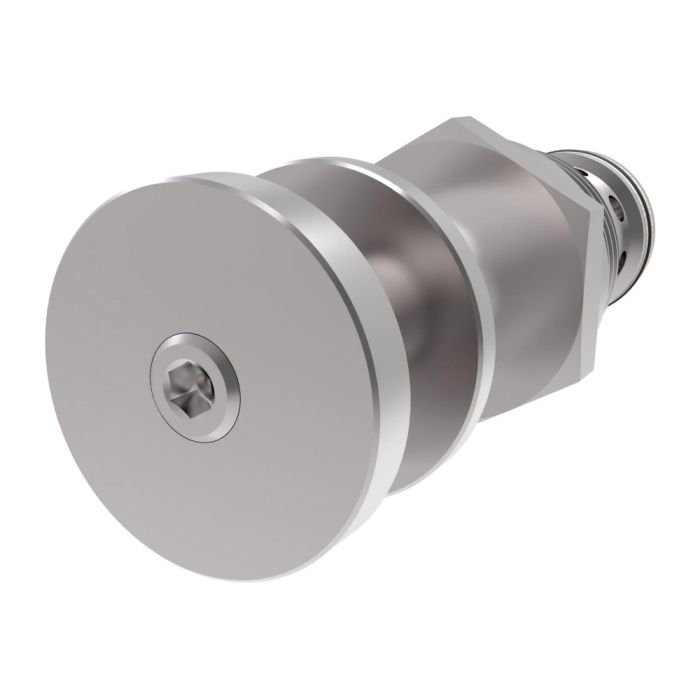

main product photo

1VR200 Series Pilot-Operated Spool Type Relief Cartridge Valve, 145-3045 PSI Screw Adjustment, Housing: None

Ask A Question

Description & Features

This Vickers by Danfoss/Eaton 1VR200 Series pilot-operated spool type relief cartridge valve is designed to limit pressure. The valve is suitable for continuous duty and accurate pressure control with constant or varying flows. It's ventable, internally pilot operated, and is designed to limit pressure in a system.

This cartridge valve features a 145-3045 PSI screw adjustment range, with a maximum flow rate of 52 GPM and a maximum operating pressure of 5000 PSI (CAUTION: Pressures over 3000 PSI require steel housing). It is made with nitrile seals and requires a 18/16/13 microns filtration level. Applications include harvesters and refuse haulers, as well as other mobile and industrial applications. This is a cartridge only unit that requires cavity size A16102, sold separately.

SKU: 407AA00011A

Supplier Part Number (MPN): 407AA00011ASP

Alternate Part Numbers: C1LX29

Specifications

Adjustable Range
145-3045
Adjustment
No
Adjustment Style
Screw
Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Electrical Flag
No
Features
350 bar (5000 psi) & 300 L/min (80 USgpm)|Reliable, economical and compact|Maximum flexibility and minimum space
Housing
None
Installation Type
Screw-in Cartridge
Leakage
35 cc/min
Minimum Working Pressure
10
Number of Housing Ports
3
Number of Valve Ports
3
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Remote Control
No
Seal Material
Nitrile
Seal Type
Nitrile
Special Features
None
Style
Spool
Supplier Part Number
407AA00011A
Switch Connector
No
Valve Material
Cartridge only
Alternate Part Numbers
Alternate Part Number C1LX29, Alternate Part Number MINO-00900X24346
Product Weight
1.09 lbs

Related Documents

Similar Products

Model Number Part Number Adjustable Range Adjustment Style Housing Seal Material Price Action
1VR200 Series Pilot-Operated Spool Type Relief Cartridge Valve, 145-3045 PSI Screw Adjustment, Housing: None

1VR200P20S 1VR200 Series Cartridge Valve

407AA00011A

145-3045

Screw

None

Nitrile

1VR200 Series Pilot-Operated Spool Type Relief Cartridge Valve, 145-3045 PSI Screw Adjustment, Housing: SAE-16 ports

1VR250P16T20S 1VR200 Series Cartridge Valve

407AA00046A

145-3045

Screw

SAE-16 ports

Nitrile

Product Questions & Answers (2)

Question by: Melvin M on Jun 1, 2025, 10:55 AM
runs continuously on a refuse hauler, will this cartridge hold up or is it gonna have issues with heat and pressure over time?
Answer by: Customer Support on Jun 2, 2025, 2:16 PM
Continuous duty is well within what this valve is built for. The 1VR200 is internally pilot operated and rated for up to 5000 PSI with a max flow of 52 GPM, and it's specifically noted as good for continuous duty with accurate pressure control across constant or varying flows. Refuse hauler applications are listed right in the intended use for this series, so it fits that environment without issue.
Question by: Brenda H on Feb 27, 2026, 3:01 PM
So, this here's just the cartridge, right? I gotta get the housing separate?
Answer by: Customer Support on Mar 1, 2026, 6:19 AM
That's correct. This is the cartridge valve only; the housing (cavity size A16102) is sold separately.
