1VR200 Series Pilot-Operated Spool Type Relief Cartridge Valves, Up To 5000 PSI & 52 GPM

Description & Features

Cartridge	Model 1VR200, sold separately
Features	This is a ventable, internally pilot operated relief valve designed to limit pressure in a system. Good for continuous duty and accurate pressure control with constant or varying flows. The vent feature can be used with remote pilot section for a two-pressure system or to allow manual or remote ‘unloading’ of the pump.
Housing	Cavity size A16102, sold separately, see
Maximum Flow Rate	52 GPM
Maximum Operating Pressure	5000 PSI (CAUTION: Pressures over 3000 PSI require steel housing).

Products

Model Number	Part Number	Adjustable Range	Adjustment Style	Housing	Seal Material	Price	Action
1VR200P20S 1VR200 Series Cartridge Valve	407AA00011A	145-3045	Screw	None	Nitrile

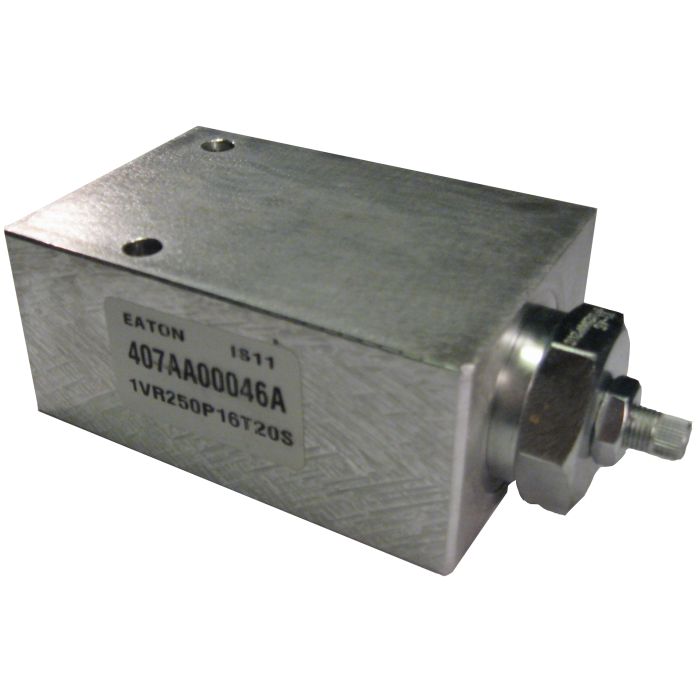

1VR250P16T20S 1VR200 Series Cartridge Valve	407AA00046A	145-3045	Screw	SAE-16 ports	Nitrile

Product Questions & Answers (1)

Question by: Floyd S on Dec 31, 2025, 8:50 PM

Will these relief valves hold up okay if they're running pretty much non-stop?

Answer by: Customer Support on Jan 2, 2026, 6:07 PM

Designed for continuous-duty pressure control, these pilot-operated relief valves are well-suited for applications where they'll be operating under constant or varying flow conditions for extended periods.
