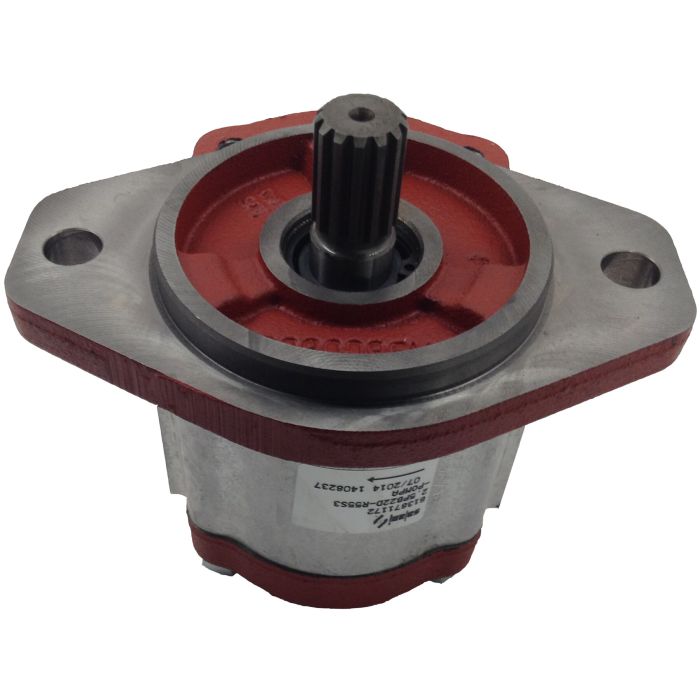

2.5PB Series Aluminum Gear Pump, 1.97 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

Description & Features

The 2.5PB Series Aluminum Gear Pump with a displacement of 1.97 cu in/rev is designed for high efficiency and reliable performance in demanding industrial environments. This pump features a 2-Bolt SAE B mounting flange and a 7/8 13T splined SAE B shaft.

It includes SAE -16 side inlet and SAE -12 side outlet ports and operates in a clockwise rotation. The pump operates at a rated flow of 15.3 GPM and a maximum speed of 3000 RPM with a continuous working pressure of 3300 PSI and peak pressures up to 4300 PSI.

Salami gear pumps utilize floating bushings for axial compensation and high volumetric efficiency across the pressure range. DU bearings enhance pressure capability. The pumps are compatible with various shaft flange and port configurations according to European German and American standards.

They are stocked in clockwise rotation but can be reversed by adjusting the drive and driven shaft positions. The pumps are suitable for multiple unit configurations within the same or different series.

Recommended filtration meets ISO 4406 standards and the pumps support a broad range of operating fluid viscosities from 66 SUS to 3635 SUS. Temperature ratings vary with seal types with Buna-N from -4deg;F to 185deg;F and Viton seals up to 230deg;F.

MPN: C1MR58

Supplier Part Number: 613871202

Specifications

Brand
Salami
Dimensions
7.136 in L x 4.72 in W x 5.91 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4300 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE B
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
2.5PB Series
Shaft
7/8 in 13 Tooth Splined SAE B

Similar Products

Model Number Displacement Flow Rate Inlet Size Outlet Size Price Action
2.5PB Series Aluminum Gear Pump, 1.68 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

613871192 2.5PB Series Gear Pump

2.5PB Series Aluminum Gear Pump, 1.17 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -12 Side Inlet, SAE -10 Side Outlet, CW Rotation

613873922 2.5PB Series Gear Pump

2.5PB Series Aluminum Gear Pump, 1.53 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

613873732 2.5PB Series Gear Pump

2.5PB Series Aluminum Gear Pump, 1.53 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

613873722 2.5PB Series Gear Pump

2.5PB Series Aluminum Gear Pump, 1.35 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed SAE B Shaft, SAE -12 Side Inlet, SAE -10 Side Outlet, CW Rotation

613871252 2.5PB Series Gear Pump

2.5PB Series Aluminum Gear Pump, 1.97 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 Straight Keyed SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

613871282 2.5PB Series Gear Pump

SALAMI GEAR PUMP 613871402EXP

2.5PB28D-R55S3

613871172

613871172

613871212

613871212

613871222

613871222

613871272

613871272

613871302

613871302

613873912

613873912

613873932

613873932

613874792

613874792

Product Questions & Answers (1)

Question by: Brett H on Feb 2, 2026, 5:02 PM
pump says clockwise rotation only, is that locked in or can it be switched around if my setup runs the other direction?
Answer by: Customer Support on Feb 4, 2026, 8:28 AM
Rotation can actually be changed on these. Reversing the positions of the drive shaft and driven shaft, then rotating the front flange, will get you to counterclockwise. It's not factory-set in a way that's permanent. Just keep in mind the unit ships standard in clockwise, so if you need CCW you'll be making that adjustment yourself on your end.
