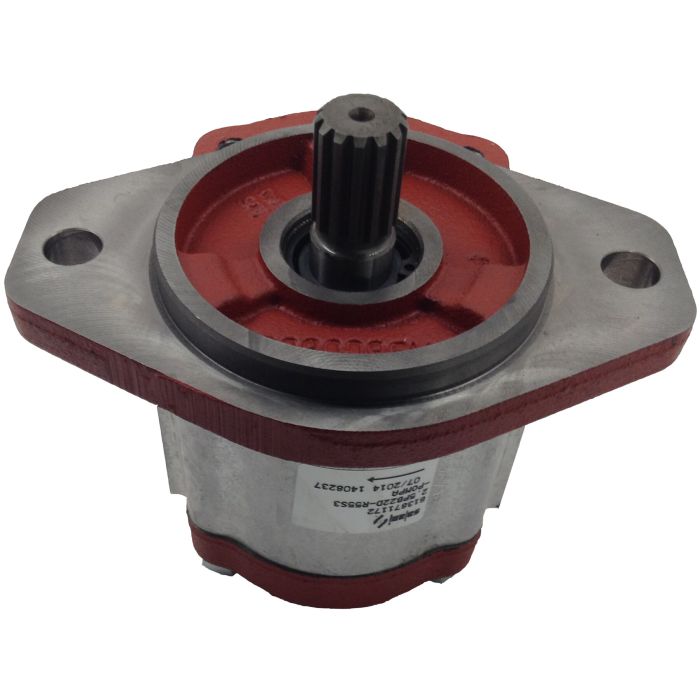

2.5PB Series Aluminum Gear Pump, 1.53 cu in/rev, 2-Bolt SAE B Mounting Flange, 7/8 13T Splined SAE B Shaft, SAE -16 Side Inlet, SAE -12 Side Outlet, CW Rotation

Description & Features

Featuring high volumetric efficiency, the Salami 2.5PB Series Aluminum Gear Pump is a robust choice for industrial applications that demand consistent performance. With a displacement of 1.53 cubic inches per revolution, this pump is designed to handle continuous working pressures up to 3600 PSI and peak pressures up to 4300 PSI, making it suitable for demanding tasks. The 2-Bolt SAE B mounting flange and 7/8 13T splined SAE B shaft ensure a secure and reliable fit, while the SAE -16 side inlet and SAE -12 side outlet provide efficient fluid management.

This gear pump is equipped with axial compensation and floating bushings to maintain high efficiency across its working pressure range. Operating within a temperature range of -4°F to 185°F with Buna-N seals or up to 230°F with FPM seals, it is adaptable to various industrial environments. Clockwise rotation and a speed rating of 3000 RPM further enhance its versatility.

SKU: 613873722

Supplier Part Number (MPN): 613873722

Alternate Part Numbers: 2.5PB25D-R55S3 PUMP, C1MR66

Specifications

Brand Salami	Dimensions 6.436 in L x 4.72 in W x 5.91 in H	Grp Pressure Limit Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4300 psi	grp Recommended Filtration < 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um	grp Recommended Fluids Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU	Housing Material Aluminum	Inlet Type SAE Threaded	Mount 2-Bolt SAE B	Mounting Type Flange	Outlet Type SAE Threaded	Rotation Clockwise	Seal Material Nitrile	Series 2.5PB Series	Shaft 7/8 in 13 Tooth Splined SAE B

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Pressure Rating	Speed Rating
613871192 2.5PB Series Gear Pump	1.68	13	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613871202 2.5PB Series Gear Pump	1.97	15.3	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3300	3000 RPM
613871252 2.5PB Series Gear Pump	1.35	10.5	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -12 Side Inlet, SAE -10 Side Outlet	CW	3600	3000 RPM
613871282 2.5PB Series Gear Pump	1.97	15.3	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3300	3000 RPM
613873732 2.5PB Series Gear Pump	1.53	11.8	2-Bolt SAE B	7/8 Straight Keyed SAE B	SAE -16 Side Inlet, SAE -12 Side Outlet	CW	3600	3000 RPM
613873922 2.5PB Series Gear Pump	1.17	9.1	2-Bolt SAE B	7/8 13T Splined SAE B	SAE -12 Side Inlet, SAE -10 Side Outlet	CW	3600	3000 RPM
