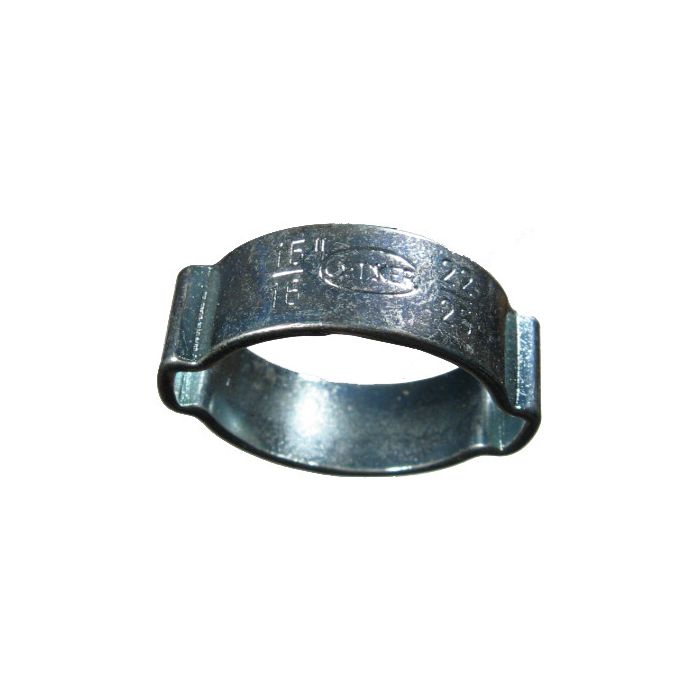

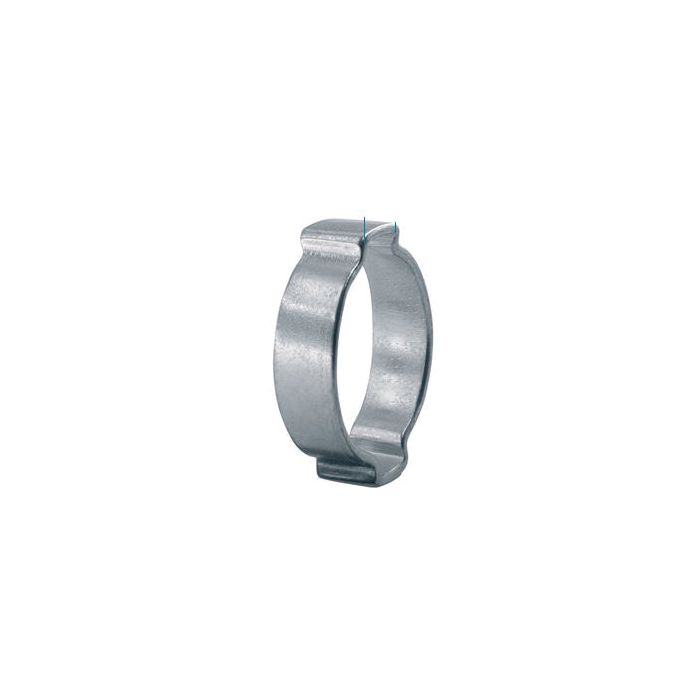

2-Ear Pinch Clamp, Zinc Plated Steel, 0.276 - 0.354 Inch Clamping Range, 0.276 Inch Width

Description & Features

Designed for industrial use and heavy vibrating equipment, the 2-Ear Pinch Clamp, Zinc Plated Steel, 0.276 - 0.354 Inch Clamping Range, 0.276 Inch Width ensures a tamper-proof seal without damaging the hose. This clamp is ideally used on air, fluid, gas, and steam lines.

The one-piece construction offers robust, reliable performance, resisting the effects of pressure, vibration, and hose shrinkage due to temperature changes or aging. It is crafted from zinc-plated steel, delivering durable and long-lasting functionality.

Installation is straightforward: close one ear fully before adjusting the second ear, which allows the first ear to open slightly, building a resilient, spring-like action. If both ears close completely, consider a smaller clamp for optimal fit and performance.

MPN: C1ZZ59

Supplier Part Number: 10100008

Specifications

Brand
OETIKER®
Finish
Zinc-Plated
grp Installation
While Both Ears Must be Closed, 2-Ear Clamps are Best Installed when 1-Ear is Closed All the Way First, the Second Ear is Then Closed So That the First Ear Opens Slightly (Gap to be Approximately 1/16 in)
Material
Steel
Nominal Size
5/16 in
Series
101 Series

Similar Products

Model Number Nominal Size Minimum Clamp Diameter Maximum Clamp Diameter Width Price Action
2-Ear Pinch Clamp, Zinc Plated Steel, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

10100027 2-Ear Pinch Clamp

3/4 in

2-Ear Pinch Clamp, Zinc Plated Steel, 0.433 - 0.512 Inch Clamping Range, 0.276 Inch Width

10100016 2-Ear Pinch Clamp

1/2 in

2-Ear Pinch Clamp, Stainless, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

15100013 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

10100011 2-Ear Pinch Clamp

3/8 in

2-Ear Pinch Clamp, Stainless, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

15100012 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

10100030 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

10100024 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

10100019 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

10100032 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

15100007 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

15100009 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

15100023 2-Ear Pinch Clamp

3/8 in

2-Ear Pinch Clamp, Stainless, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

15100010 2-Ear Pinch Clamp

3/4 in

15100004

15100004

OETIKER 2 EAR CLAMP STAINLESS STEEL CLAMP 1/2

15100006

15100014

15100014

OETIKER 1 1/8 INCH 2 EAR CLAMP SS

15100016

Product Questions & Answers (3)

Question by: Melvin C on Jul 6, 2025, 3:01 PM
got a hose sitting right at about 5/16 inch diameter -- will this clamp actually get a solid grip on something that size, or do i need to size up?
Answer by: Customer Support on Jul 8, 2025, 11:38 AM
At 5/16 inch nominal size, that hose falls right in the middle of the 0.276 to 0.354 inch clamping range, so you're in good shape. The sweet spot with these Oetiker 2-ear clamps is having enough material to work with so the second ear doesn't fully close out. When you install it, close the first ear all the way down, then bring the second ear in until the first one opens back up just a hair, roughly 1/16 inch gap. That spring-like tension is what gives you a secure, tamper-proof hold against pressure and vibration over time.
Question by: Floyd C on Sep 11, 2025, 2:21 PM
i’ve got a hose that measures right around 5/16. is this clamp gonna fit it or am i gonna be fighting it
Answer by: Customer Support on Sep 13, 2025, 11:56 AM
Fit comes down to the clamping range, and this one covers 0.276 to 0.354 inch. It is also listed as a 5/16 nominal size, so a hose that lands in that range is what it is meant to clamp.
Question by: Brent R on Dec 24, 2025, 7:18 PM
What's the best way to install these ear clamps? I wanna make sure I do it right the first time.
Answer by: Customer Support on Dec 26, 2025, 1:19 PM
For best results, close one ear completely before adjusting the second ear. This allows the first ear to open slightly, which builds a resilient, spring-like action. If both ears close all the way without resistance, you might need a slightly smaller clamp size for the best fit.
