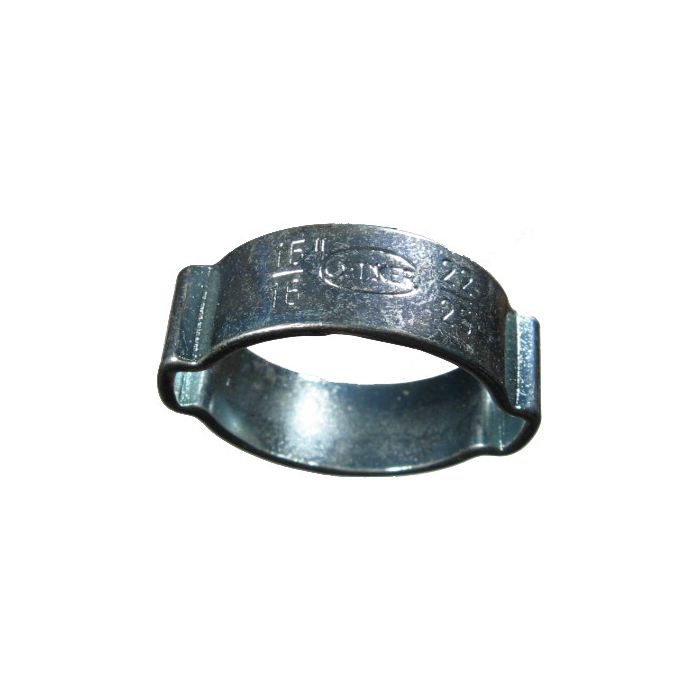

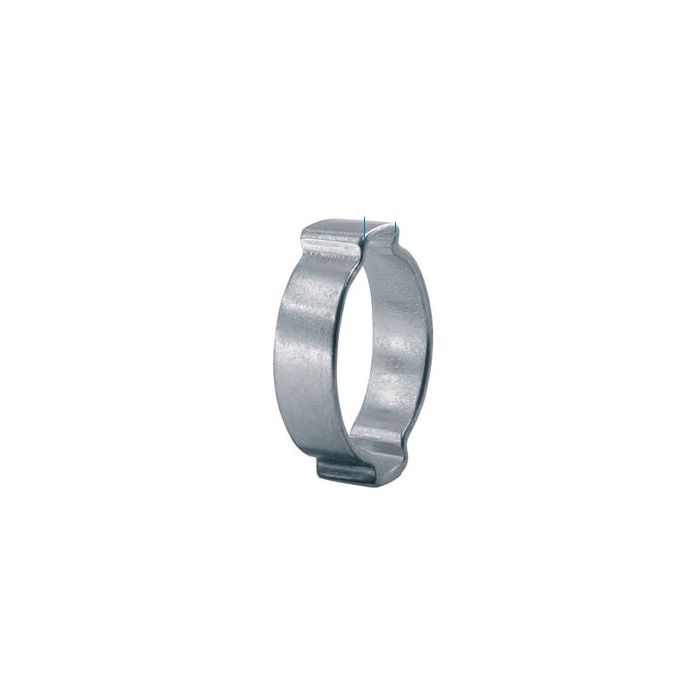

2-Ear Pinch Clamp, Zinc Plated Steel, 0.433 - 0.512 Inch Clamping Range, 0.276 Inch Width

Description & Features

Designed for industrial environments, this Oetiker clamp offers a reliable seal ideal for heavy vibrating equipment. It is installed on air, fluid, gas, and steam lines, providing a tamper-proof solution without damaging hoses.

Constructed from zinc-plated steel, it features a clamping range of 0.433 to 0.512 inches and a nominal width of 0.276 inches. The two-ear design ensures a resilient hold against pressure, vibration, and hose shrinkage due to aging or temperature changes.

For optimal performance, close one ear completely before partially closing the second. This builds spring-like strength into the clamp. If both ears close completely, consider using a smaller size.

MPN: C1ZZ57

Supplier Part Number: 10100016

Specifications

Clamping Range (in) 0.433 - 0.512	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Zinc Plated Steel	Nominal Size 0.50	Supplier Part Number 10100016	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1ZZ57, Alternate Part Number MI-01545225, Alternate Part Number MINO-00691F87192

Similar Products

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008 2-Ear Pinch Clamp	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011 2-Ear Pinch Clamp	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016 2-Ear Pinch Clamp	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019 2-Ear Pinch Clamp	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024 2-Ear Pinch Clamp	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027 2-Ear Pinch Clamp	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030 2-Ear Pinch Clamp	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032 2-Ear Pinch Clamp	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007 2-Ear Pinch Clamp	Stainless	0.5625	0.512 - 0.592	0.295
15100009 2-Ear Pinch Clamp	Stainless	0.625	0.591 - 0.708	0.315
15100010 2-Ear Pinch Clamp	Stainless	0.75	0.669 - 0.787	0.335
15100012 2-Ear Pinch Clamp	Stainless	0.875	0.787 - 0.905	0.354
15100023 2-Ear Pinch Clamp	Stainless	0.375	0.315 - 0.433	0.276

Product Questions & Answers (1)

Question by: Cindy B on Feb 15, 2026, 3:32 PM

Got a half-inch hose fitting I need to clamp down on an air line that sees a good bit of vibration. Will this clamp hold up to that kind of punishment?

Answer by: Customer Support on Feb 17, 2026, 10:14 AM

Zinc-plated steel construction and the two-ear pinch design make this clamp well-suited for exactly that kind of application. The way these work, you close the first ear all the way, then bring the second ear down until the first opens back up just slightly, about a 1/16 inch gap. That sequence builds a spring-like tension into the clamp so it stays tight even as vibration cycles and the hose material shifts over time. Oetiker specifically calls out heavy vibrating equipment as one of the primary use cases for this design, so you're in good shape there.
