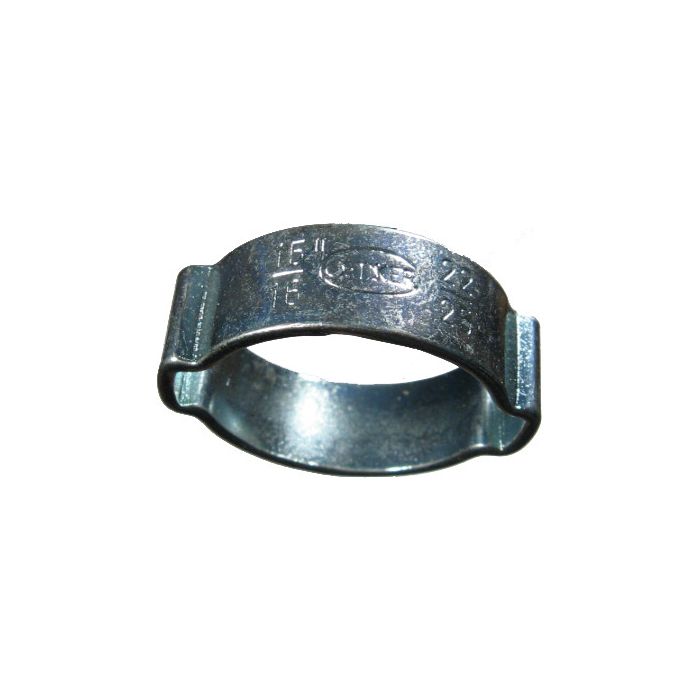

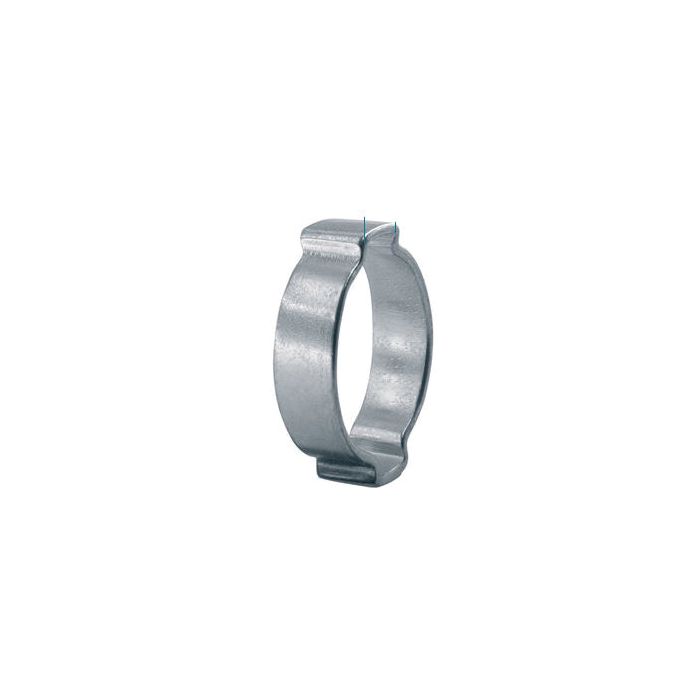

2-Ear Pinch Clamp, Zinc Plated Steel, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

Description & Features

Engineered for industrial applications, the Oetiker Inc. 2-Ear Pinch Clamp is expertly crafted from zinc plated steel. Suitable for air, fluid, gas, and steam lines, its robust construction provides a secure, tamper-proof seal without damaging the hose. With a clamping range of 0.512 to 0.592 inches and a width of 0.295 inches, it ensures resilient strength against pressure, vibration, and hose shrinkage due to temperature changes or aging.

The innovative one-piece design is particularly effective for use with heavy vibrating equipment. For optimal installation, close one ear completely before partially closing the second ear. This technique promotes a spring-like action, ensuring a reliable hold.

**Supplier Part Number**: 10100019

**MPN**: C1ZZ56

Specifications

Clamping Range (in) 0.512 - 0.592	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Zinc Plated Steel	Nominal Size 0.56	Supplier Part Number 10100019	Product Weight 0.02 lbs	Alternate Part Numbers Alternate Part Number C1ZZ56, Alternate Part Number MI-01545236, Alternate Part Number MINO-00691F87193

Similar Products

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008 2-Ear Pinch Clamp	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011 2-Ear Pinch Clamp	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016 2-Ear Pinch Clamp	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019 2-Ear Pinch Clamp	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024 2-Ear Pinch Clamp	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027 2-Ear Pinch Clamp	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030 2-Ear Pinch Clamp	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032 2-Ear Pinch Clamp	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007 2-Ear Pinch Clamp	Stainless	0.5625	0.512 - 0.592	0.295
15100009 2-Ear Pinch Clamp	Stainless	0.625	0.591 - 0.708	0.315
15100010 2-Ear Pinch Clamp	Stainless	0.75	0.669 - 0.787	0.335
15100012 2-Ear Pinch Clamp	Stainless	0.875	0.787 - 0.905	0.354
15100023 2-Ear Pinch Clamp	Stainless	0.375	0.315 - 0.433	0.276

Product Questions & Answers (3)

Question by: Joyce M on Jul 19, 2025, 1:59 PM

got a hose that measures right around 9/16 on the outside. is this clamp the right size or am i gonna fight it?

Answer by: Customer Support on Jul 20, 2025, 6:12 PM

You want the hose OD to land inside the clamp’s 0.512 to 0.592 inch clamping range. The nominal size is 0.5625 inch, so a hose that is about 9/16 OD is in the window.

Question by: Billy S on Dec 16, 2025, 7:29 PM

What's the best way to put these on so they hold good?

Answer by: Customer Support on Dec 18, 2025, 4:12 PM

Optimal installation involves fully closing one ear before partially closing the second. This creates a spring-like action, ensuring a reliable and lasting grip against pressure, vibration, and hose shrinkage.

Question by: Chad E on Oct 10, 2025, 8:12 PM

what's the right way to install one of these 2-ear clamps? i always just squeeze both ears down at the same time but heard that ain't the best method

Answer by: Customer Support on Oct 12, 2025, 5:04 PM

Close the first ear all the way before you touch the second one. Then close the second ear just enough so the first ear opens back up slightly, leaving about a 1/16 inch gap. That sequence builds tension into the clamp so it acts more like a spring, which helps it stay tight against pressure, vibration, and hose shrinkage over time. If you can close both ears completely flat, the clamp is likely too large and you should drop down to the next smaller size.
