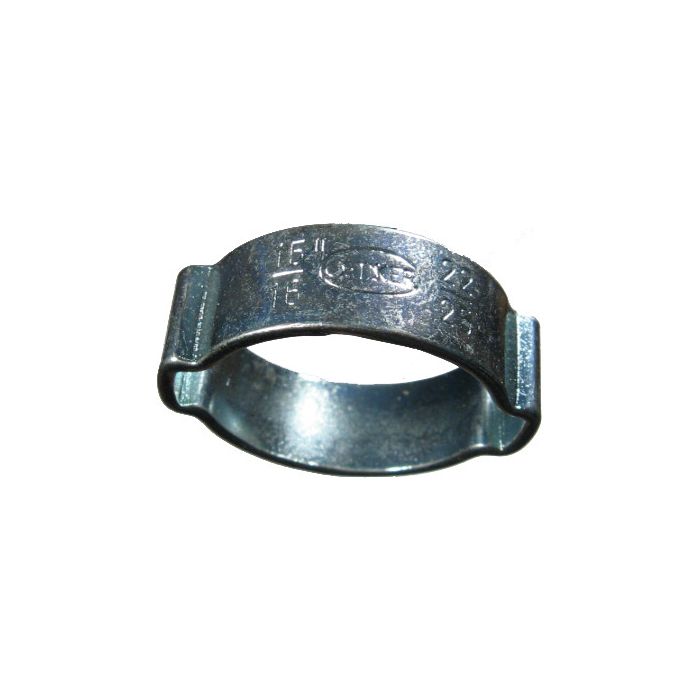

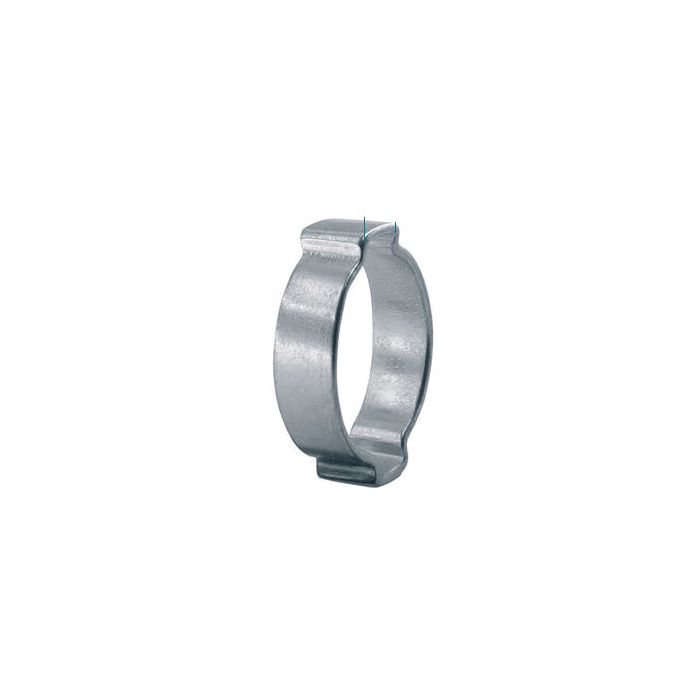

2-Ear Pinch Clamp, Zinc Plated Steel, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

Description & Features

The Oetiker Inc. 2-Ear Pinch Clamp, constructed from durable zinc plated steel, provides a reliable clamping range of 0.591 - 0.708 inches and a width of 0.315 inches. This versatile clamp is especially suited for use with air, fluid, gas, and steam lines in industrial environments, including heavy vibrating equipment.

The one-piece design ensures a positive, tamper-proof seal without damaging the hose. For optimal installation, both ears should be closed, starting with one ear completely followed by the second ear, allowing for a spring-like action that maintains clamping force against pressure, vibration, and hose shrinkage.

This clamp's nominal size is 0.625 inches, offering a robust solution for preventing leakage. If both ears can be closed fully, the clamp may be too large, and a smaller size should be considered.

MPN: 10100024

Supplier Part Number: 10100024

Specifications

Clamping Range (in) 0.591 - 0.708	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Zinc Plated Steel	Nominal Size 0.63	Supplier Part Number 10100024	Product Weight 0.06 lbs	Alternate Part Numbers Alternate Part Number C1ZZ55, Alternate Part Number MI-01545248, Alternate Part Number MINO-00691F87195

Similar Products

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008 2-Ear Pinch Clamp	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011 2-Ear Pinch Clamp	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016 2-Ear Pinch Clamp	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019 2-Ear Pinch Clamp	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024 2-Ear Pinch Clamp	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027 2-Ear Pinch Clamp	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030 2-Ear Pinch Clamp	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032 2-Ear Pinch Clamp	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007 2-Ear Pinch Clamp	Stainless	0.5625	0.512 - 0.592	0.295
15100009 2-Ear Pinch Clamp	Stainless	0.625	0.591 - 0.708	0.315
15100010 2-Ear Pinch Clamp	Stainless	0.75	0.669 - 0.787	0.335
15100012 2-Ear Pinch Clamp	Stainless	0.875	0.787 - 0.905	0.354
15100023 2-Ear Pinch Clamp	Stainless	0.375	0.315 - 0.433	0.276

Product Questions & Answers (2)

Question by: Earl S on Feb 20, 2026, 6:42 PM

What size hose does this clamp fit best? I'm having a heck of a time figuring out the right size.

Answer by: Customer Support on Feb 22, 2026, 1:39 PM

This clamp works best on hoses that are around 0.625 inches in outer diameter. Just make sure your hose falls within the clamping range of 0.591 to 0.708 inches for a good, tight fit.

Question by: Dale S on Mar 4, 2026, 11:08 AM

got a hose sitting right at 0.650 inches outside diameter, this clamp gonna have enough range to grab it good?

Answer by: Customer Support on Mar 5, 2026, 7:16 PM

At 0.650 inches, you're sitting right in the middle of the clamping range on this one, which runs from 0.591 to 0.708 inches. That's actually a solid spot to land. Clamps tend to perform best when the hose falls near the center of the range rather than at either extreme, so you should get a reliable, consistent grip without having to force anything.
