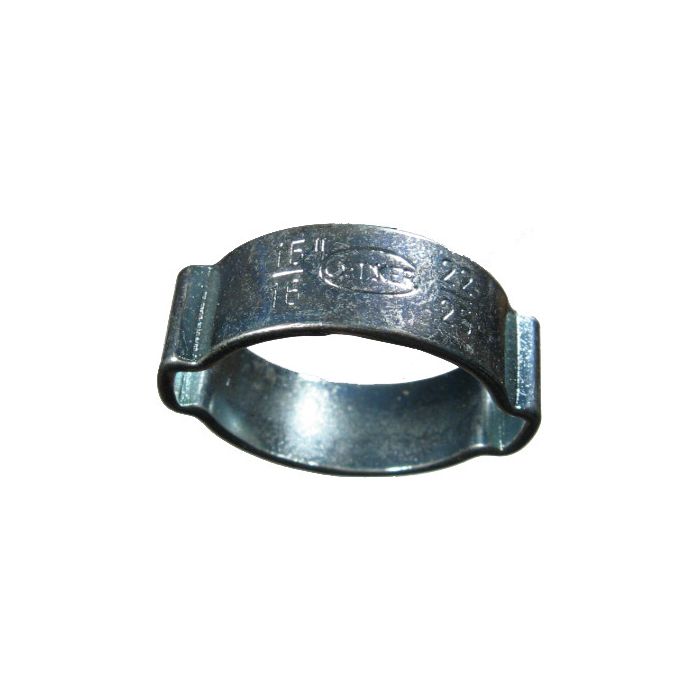

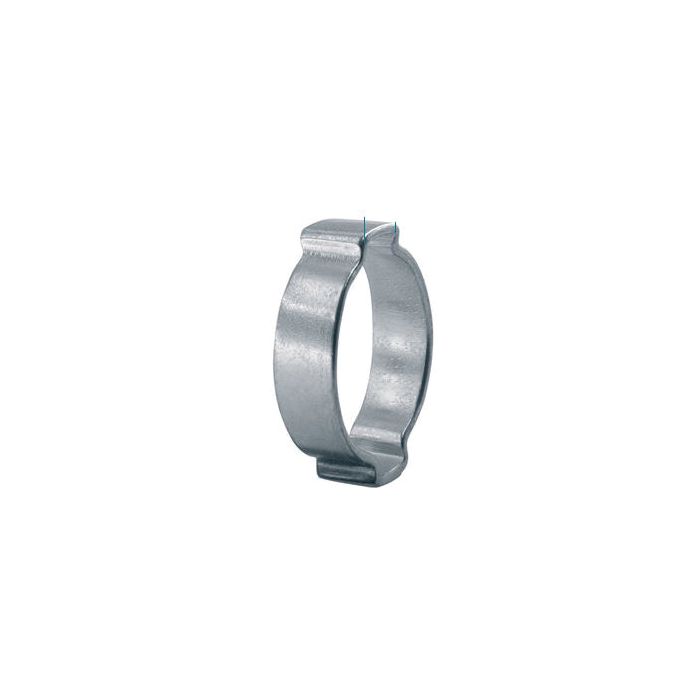

2-Ear Pinch Clamp, Zinc Plated Steel, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

Description & Features

The Oetiker Inc. 2-Ear Pinch Clamp is designed to efficiently secure hoses in industrial settings, especially with heavy vibrating equipment. This zinc-plated steel clamp offers a clamping range of 0.787 - 0.905 inches and a width of 0.354 inches, ensuring a robust and reliable seal.

The one-piece design creates a tamper-proof seal without damaging the hose, ideal for air, fluid, gas, and steam lines. For optimal installation, close one ear fully before closing the second ear to create a spring-like action that maintains tension against pressure, vibration, and hose shrinkage over time.

A versatile choice for various industrial applications, this pinch clamp provides durability and consistent performance. Note that if both ears close completely, selecting a smaller size is recommended to ensure proper fit and function.

MPN: 10100030

Supplier Part Number: 10100030

Specifications

Brand
OETIKER®
Finish
Zinc-Plated
grp Installation
While Both Ears Must be Closed, 2-Ear Clamps are Best Installed when 1-Ear is Closed All the Way First, the Second Ear is Then Closed So That the First Ear Opens Slightly (Gap to be Approximately 1/16 in)
Material
Steel
Series
101 Series

Similar Products

Model Number Nominal Size Minimum Clamp Diameter Maximum Clamp Diameter Width Price Action
2-Ear Pinch Clamp, Zinc Plated Steel, 0.276 - 0.354 Inch Clamping Range, 0.276 Inch Width

10100008 2-Ear Pinch Clamp

5/16 in

2-Ear Pinch Clamp, Zinc Plated Steel, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

10100027 2-Ear Pinch Clamp

3/4 in

2-Ear Pinch Clamp, Zinc Plated Steel, 0.433 - 0.512 Inch Clamping Range, 0.276 Inch Width

10100016 2-Ear Pinch Clamp

1/2 in

2-Ear Pinch Clamp, Stainless, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

15100013 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

10100011 2-Ear Pinch Clamp

3/8 in

2-Ear Pinch Clamp, Stainless, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

15100012 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

10100024 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

10100019 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

10100032 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

15100007 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

15100009 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

15100023 2-Ear Pinch Clamp

3/8 in

2-Ear Pinch Clamp, Stainless, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

15100010 2-Ear Pinch Clamp

3/4 in

15100004

15100004

OETIKER 2 EAR CLAMP STAINLESS STEEL CLAMP 1/2

15100006

15100014

15100014

OETIKER 1 1/8 INCH 2 EAR CLAMP SS

15100016

Product Questions & Answers (3)

Question by: Danny W on Apr 10, 2025, 2:09 PM
got a hose that measures right around 7/8 on the outside, is this clamp gonna fit it or am i pushing it
Answer by: Customer Support on Apr 12, 2025, 6:46 AM
You want the hose OD to land inside the clamp’s 0.787 to 0.905 inch clamping range. A hose that is about 7/8 inch, or 0.875, sits right in the middle of that range, so it’s the right size window for it.
Question by: Tammy C on Feb 22, 2026, 6:36 PM
how do you actually install one of these right, do both ears get closed at the same time?
Answer by: Customer Support on Feb 24, 2026, 12:32 PM
Close the first ear all the way down before you touch the second one. Once that first ear is fully closed, then close the second ear just enough so the first ear opens back up a little, roughly a 1/16 inch gap. That slight opening builds tension into the clamp, kind of like a spring, so it holds firm against pressure, vibration, and any hose shrinkage that happens over time from heat or aging.
Question by: Warren S on Oct 26, 2025, 10:30 AM
Can you use these pinch clamps on fuel lines?
Answer by: Customer Support on Oct 27, 2025, 12:43 PM
These Oetiker 2-ear clamps are indeed used for securing lines carrying fluids, including fuel, as well as air, gas, and steam in industrial settings.
