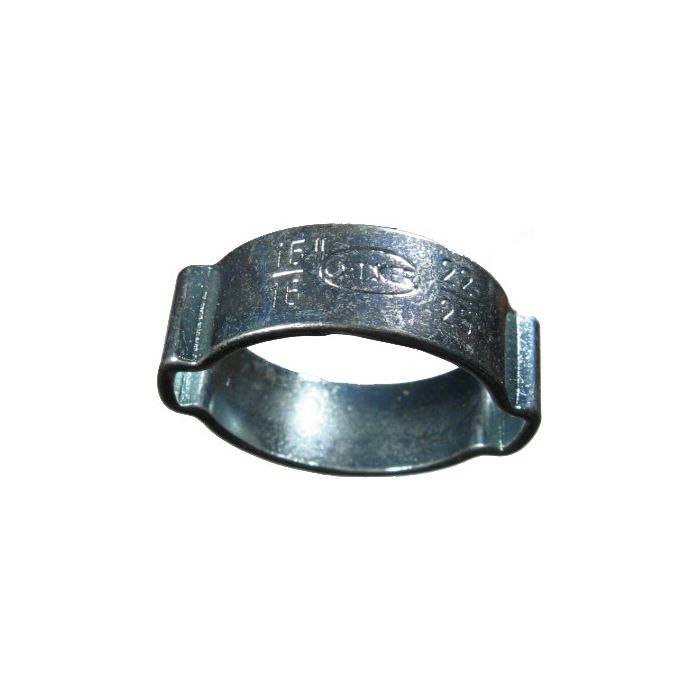

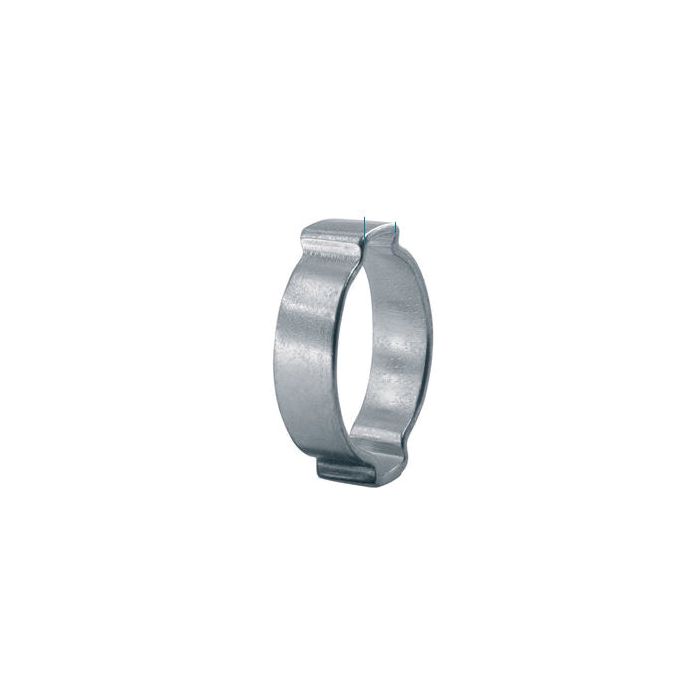

2-Ear Pinch Clamp, Zinc Plated Steel, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

Description & Features

Designed for robust performance, the 2-Ear Pinch Clamp ensures a reliable, tamper-proof seal for industrial applications. Constructed from zinc plated steel, this clamp offers durability and resistance to corrosion, making it ideal for environments with heavy vibration. With a clamping range of 0.866 to 0.984 inches and a width of 0.394 inches, it is particularly suited for securing hoses on air, fluid, gas, and steam lines.

The clamp’s two-ear design provides a resilient grip through a spring-like action, accommodating pressure fluctuations and hose shrinkage due to temperature changes. For optimal performance, Oetiker recommends using their specialized pincers for installation. This ensures the clamp is applied with precision, maintaining its integrity against pressure and vibration.

SKU: 10100032

Supplier Part Number (MPN): 10100032

Alternate Part Numbers: C1ZZ52, MI-01545283, MINO-00691F87199

Specifications

Clamping Range (in) 0.866 - 0.984	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Zinc Plated Steel	Nominal Size 0.94	Supplier Part Number 10100032	Product Weight 0.04 lbs	Alternate Part Numbers Alternate Part Number C1ZZ52, Alternate Part Number MI-01545283, Alternate Part Number MINO-00691F87199

Similar Products

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008 2-Ear Pinch Clamp	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011 2-Ear Pinch Clamp	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016 2-Ear Pinch Clamp	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019 2-Ear Pinch Clamp	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024 2-Ear Pinch Clamp	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027 2-Ear Pinch Clamp	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030 2-Ear Pinch Clamp	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032 2-Ear Pinch Clamp	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007 2-Ear Pinch Clamp	Stainless	0.5625	0.512 - 0.592	0.295
15100009 2-Ear Pinch Clamp	Stainless	0.625	0.591 - 0.708	0.315
15100010 2-Ear Pinch Clamp	Stainless	0.75	0.669 - 0.787	0.335
15100012 2-Ear Pinch Clamp	Stainless	0.875	0.787 - 0.905	0.354
15100023 2-Ear Pinch Clamp	Stainless	0.375	0.315 - 0.433	0.276

Product Questions & Answers (2)

Question by: Rick P on Apr 16, 2025, 6:34 PM

got a hose that measures right around 15/16 inch on the outside. is this clamp in the ballpark or am i gonna be fighting it

Answer by: Customer Support on Apr 18, 2025, 6:50 AM

You want the hose outside diameter to land in the clamp’s clamping range of 0.866 to 0.984 inch. A 15/16 inch OD is 0.9375 inch, which sits right in that range and matches the nominal size listed, so it should be a good match.

Question by: Harold M on Mar 24, 2025, 6:04 PM

What kinda lines would you use this clamp on? Just tryin' to figure out if it's right for what I need.

Answer by: Customer Support on Mar 26, 2025, 6:01 AM

These clamps are especially suited for industrial use and work well with heavy vibrating equipment. You can use them on air, fluid, gas and steam lines.
