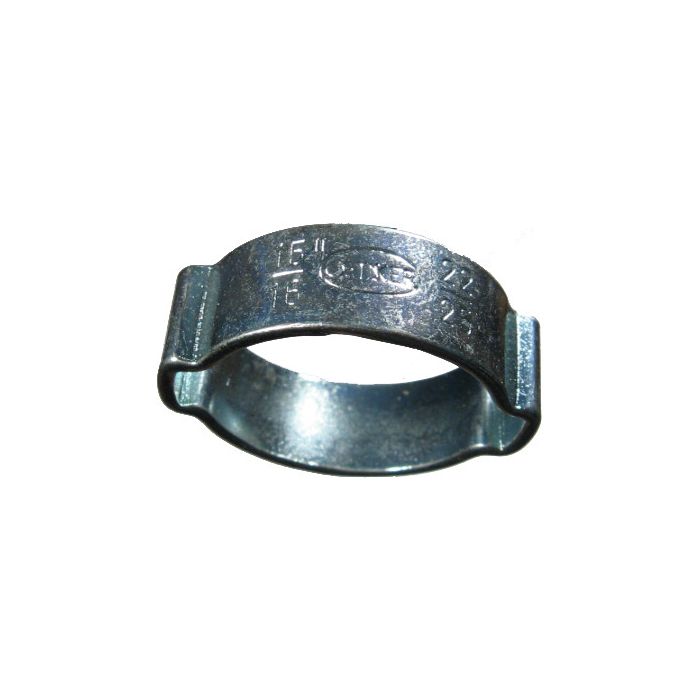

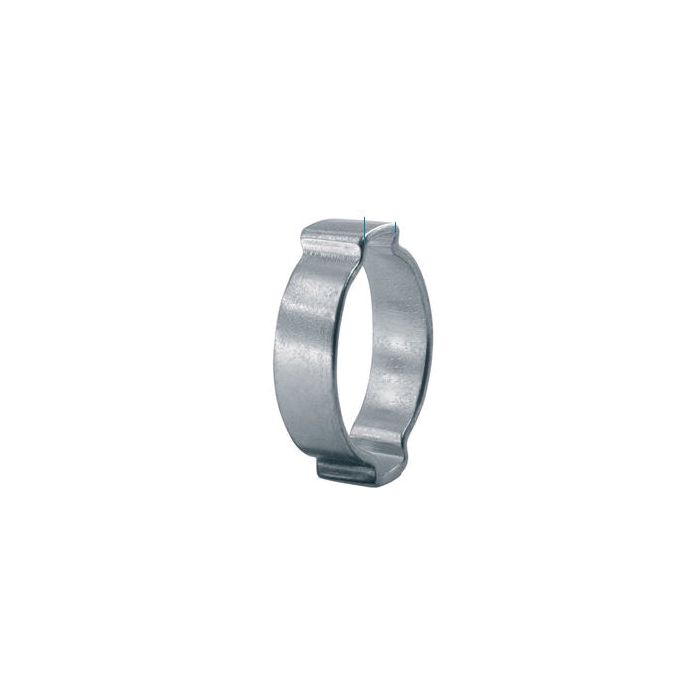

2-Ear Pinch Clamp, Stainless, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

Description & Features

Manufactured by Oetiker Inc., this premium-grade 2-Ear Pinch Clamp is built from durable stainless steel. It provides a secure and tamper-proof seal for air, fluid, gas, and steam lines. With a clamping range of 0.591 to 0.708 inches and a width of 0.315 inches, it is especially suited for industrial applications and heavy vibrating equipment.

Its one-piece design ensures a robust hold against pressure and vibration without causing hose damage. This clamp is ideal for maintaining performance in environments subject to temperature changes or aging. Proper installation requires closing one ear all the way first, followed by the second ear to create a spring-like action that holds the seal under various conditions.

Supplier Part Number: 15100009

MPN: C1ES48

Specifications

Clamping Range (in) 0.591 - 0.708	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Stainless	Nominal Size 0.63	Supplier Part Number 15100009	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1ES48, Alternate Part Number MI-01555282, Alternate Part Number MINO-00691J50969

Similar Products

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008 2-Ear Pinch Clamp	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011 2-Ear Pinch Clamp	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016 2-Ear Pinch Clamp	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019 2-Ear Pinch Clamp	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024 2-Ear Pinch Clamp	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027 2-Ear Pinch Clamp	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030 2-Ear Pinch Clamp	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032 2-Ear Pinch Clamp	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007 2-Ear Pinch Clamp	Stainless	0.5625	0.512 - 0.592	0.295
15100010 2-Ear Pinch Clamp	Stainless	0.75	0.669 - 0.787	0.335
15100012 2-Ear Pinch Clamp	Stainless	0.875	0.787 - 0.905	0.354
15100023 2-Ear Pinch Clamp	Stainless	0.375	0.315 - 0.433	0.276

Product Questions & Answers (1)

Question by: Frank D on May 12, 2025, 9:45 PM

got a hose sitting right at 0.650 inches outside diameter, this clamp gonna close up proper on that or is it borderline?

Answer by: Customer Support on May 14, 2025, 6:26 AM

Right in the middle of the clamping range, so you're in good shape. The clamp runs from 0.591 to 0.708 inches, and 0.650 sits comfortably in there. One thing worth knowing on the install side: close the first ear all the way down before touching the second one. That sequence is what gives the clamp its spring-like holding action. If you close both ears completely flat, that usually means the clamp is running too big for the hose and you'd want to step down to the next size.
