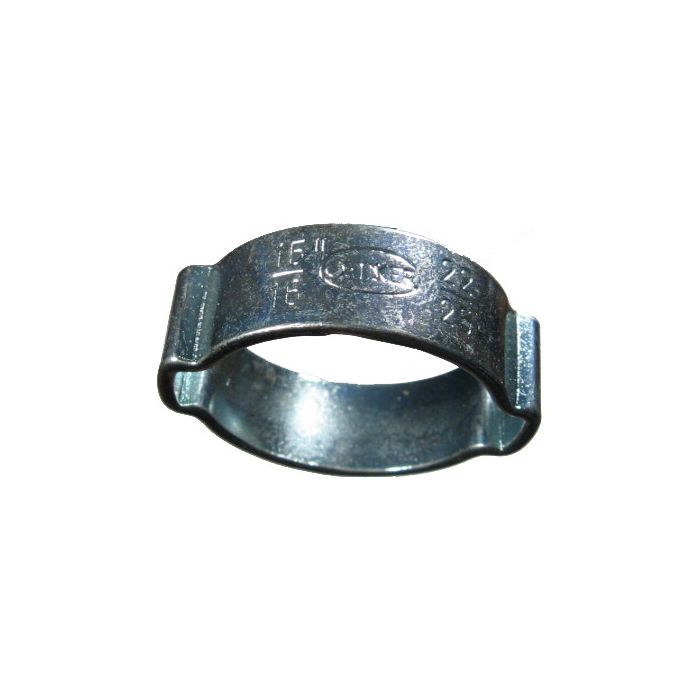

2-Ear Pinch Clamp, Stainless, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

Ask A Question

Description & Features

Ideal for industrial use and heavy vibrating equipment, this stainless clamp is designed for durability. The one-piece construction ensures a secure, tamper-proof seal without causing hose damage. Clamping range spans from 0.315 to 0.433 inches and features a width of 0.276 inches, fitting nominal sizes up to 0.375 inches. Once the first ear is closed, the second ear can be shut, creating a spring-like action to withstand pressure, vibration, and hose shrinkage from temperature variations.

These clamps are particularly effective on air, fluid, gas, and steam lines. With proper installation, they maintain a resilient strength against various operational stresses. The item comes with reliable performance due to its precise manufacturing, making it a dependable choice for demanding conditions.

Supplier Part Number: 15100023

Specifications

Brand
OETIKER®
Finish
Plain
grp Installation
While Both Ears Must be Closed, 2-Ear Clamps are Best Installed when 1-Ear is Closed All the Way First, the Second Ear is Then Closed So That the First Ear Opens Slightly (Gap to be Approximately 1/16 in)
Material
Stainless Steel
Nominal Size
3/8 in
Series
151 Series

Similar Products

Model Number Nominal Size Minimum Clamp Diameter Maximum Clamp Diameter Width Price Action
2-Ear Pinch Clamp, Zinc Plated Steel, 0.276 - 0.354 Inch Clamping Range, 0.276 Inch Width

10100008 2-Ear Pinch Clamp

5/16 in

2-Ear Pinch Clamp, Zinc Plated Steel, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

10100027 2-Ear Pinch Clamp

3/4 in

2-Ear Pinch Clamp, Zinc Plated Steel, 0.433 - 0.512 Inch Clamping Range, 0.276 Inch Width

10100016 2-Ear Pinch Clamp

1/2 in

2-Ear Pinch Clamp, Stainless, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

15100013 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.315 - 0.433 Inch Clamping Range, 0.276 Inch Width

10100011 2-Ear Pinch Clamp

3/8 in

2-Ear Pinch Clamp, Stainless, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

15100012 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.787 - 0.905 Inch Clamping Range, 0.354 Inch Width

10100030 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

10100024 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

10100019 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Zinc Plated Steel, 0.866 - 0.984 Inch Clamping Range, 0.394 Inch Width

10100032 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.512 - 0.592 Inch Clamping Range, 0.295 Inch Width

15100007 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.591 - 0.708 Inch Clamping Range, 0.315 Inch Width

15100009 2-Ear Pinch Clamp

2-Ear Pinch Clamp, Stainless, 0.669 - 0.787 Inch Clamping Range, 0.335 Inch Width

15100010 2-Ear Pinch Clamp

3/4 in

15100004

15100004

OETIKER 2 EAR CLAMP STAINLESS STEEL CLAMP 1/2

15100006

15100014

15100014

OETIKER 1 1/8 INCH 2 EAR CLAMP SS

15100016

Product Questions & Answers (1)

Question by: Wayne P on Apr 24, 2025, 12:31 PM
i’ve got 3/8 inch hose, is this clamp the right size or am i gonna be fighting it?
Answer by: Customer Support on Apr 26, 2025, 6:20 AM
For a nominal 3/8 inch hose, this clamp is sized to fit up to 0.375 inch and it tightens over a 0.315 to 0.433 inch clamping range. If your hose outside diameter falls in that range, it is the right fit.
