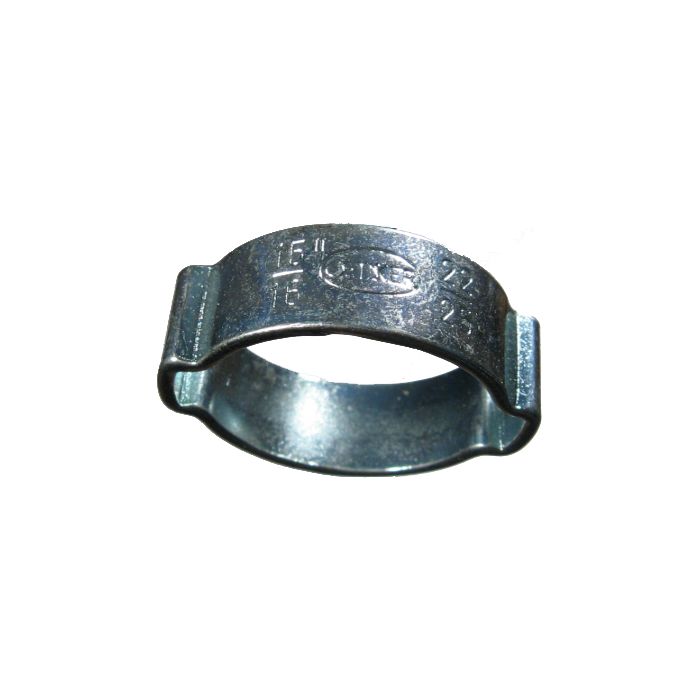

2-Ear Pinch Clamps

Description & Features

Application	Especially suited for industrial use and with heavy vibrating equipment. These clamps are installed on air, fluid, gas and steam lines. The one piece design offers a positive, tamper-proof seal without damaging the hose.
Installation	While both ears must be closed, 2-Ear clamps are best installed when one ear is closed all the way first. The second ear is then closed so that the first ear opens slightly (gap to be approximately 1/16 inch). This builds a resilient strength into the clamp in a spring-like action to hold against pressure, vibration and hose shrinkage due to temperature changes or aging. (If both ears can be closed all the way, the clamp size selected is probably too big and the next smaller clamp should be used).
Note	To insure a proper grip, Oetiker clamps should be installed with either Oetiker Pincers or a similar style of pincer approved by Oetiker, Inc.

Model Number	Materials	Nominal Size	Clamping Range (in)	Width (in)
10100008 2-Ear Pinch Clamp	Zinc Plated Steel	0.3125	0.276 - 0.354	0.276
10100011 2-Ear Pinch Clamp	Zinc Plated Steel	0.375	0.315 - 0.433	0.276
10100016 2-Ear Pinch Clamp	Zinc Plated Steel	0.5	0.433 - 0.512	0.276
10100019 2-Ear Pinch Clamp	Zinc Plated Steel	0.5625	0.512 - 0.592	0.295
10100024 2-Ear Pinch Clamp	Zinc Plated Steel	0.625	0.591 - 0.708	0.315
10100027 2-Ear Pinch Clamp	Zinc Plated Steel	0.75	0.669 - 0.787	0.335
10100030 2-Ear Pinch Clamp	Zinc Plated Steel	0.875	0.787 - 0.905	0.354
10100032 2-Ear Pinch Clamp	Zinc Plated Steel	0.9375	0.866 - 0.984	0.394
15100007 2-Ear Pinch Clamp	Stainless	0.5625	0.512 - 0.592	0.295
15100009 2-Ear Pinch Clamp	Stainless	0.625	0.591 - 0.708	0.315
15100010 2-Ear Pinch Clamp	Stainless	0.75	0.669 - 0.787	0.335
15100012 2-Ear Pinch Clamp	Stainless	0.875	0.787 - 0.905	0.354
15100023 2-Ear Pinch Clamp	Stainless	0.375	0.315 - 0.433	0.276

Question by: Hank B on Oct 30, 2025, 5:23 PM

What kind of tool do I need to put these on right?

Answer by: Customer Support on Nov 1, 2025, 2:04 PM

For the best grip, you'll want to use Oetiker Pincers or a similar style of pincer that's been approved by Oetiker, Inc.
