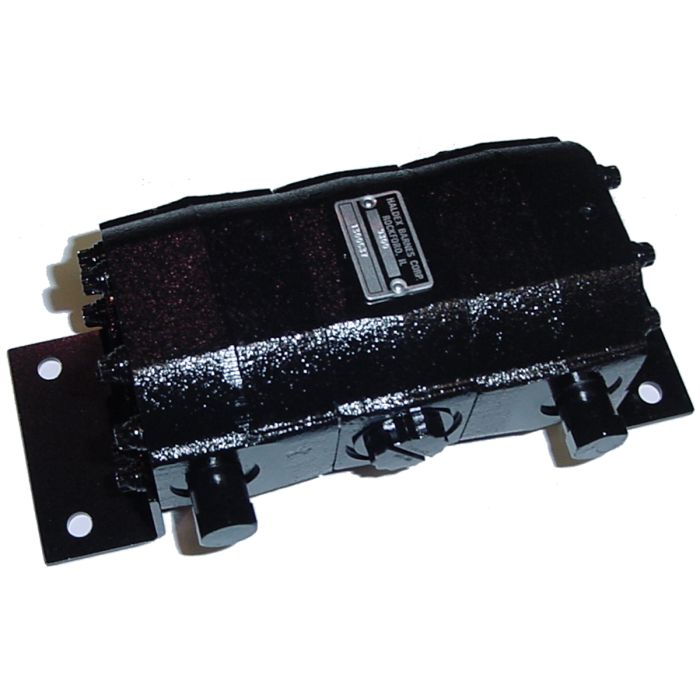

2-Section Geared Flow Dividers With Differential Pressure Relief Valves, Up To 3000 PSI Inlet & 4500 RPM

Description & Features

Application	Equal flow two-section units divide flow from a common pump source into two separate flows of equal proportion. Can be used to synchronize the operation of two cylinders. For greatest efficiency and accuracy, flow dividers should be used at near maximum rated inlet flow. Over-pressure protection is provided by built-in relief valves in each circuit.
Differential Pressure Relief Valves	Adjustable from 500-1000 PSI (Set at 750 PSI).
Features	Differential pressure relief valves. Up to 3,000 PSI inlet pressure. Up to 4500 PSI outlet pressure. High pressure seal. Hardened steel gears. Cast iron bodies.
Speed Ratings	1500 RPM Minimum. 4500 RPM Maximum.

Products

Model Number	Displacement	Inlet Port	Outlet Port	Recommended Minimum Inlet Flow	Recommended Maximum Inlet Flow	Max. Diff. Pressure Between Sections	Max. Intermittent Diff. Pressure Between Sections	Price	Action
1300637 2-Section Geared Flow Divider	0.517	7/8-14 SAE	7/8-14 SAE	9	18	1200	2000

Product Questions & Answers (1)

Question by: Hank C on Jun 6, 2025, 10:05 AM

How fast can these geared flow dividers run? Wondering about min and max speeds.

Answer by: Customer Support on Jun 8, 2025, 6:16 AM

These gear flow dividers are designed to operate between 1500 and 4500 RPM. Running them within this range will ensure optimal performance and longevity.
