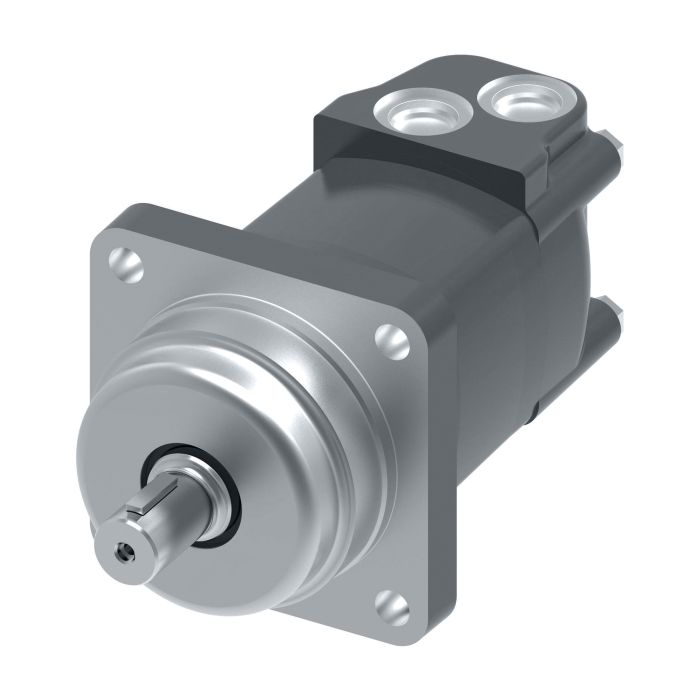

main product photo

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard motor excels in various industrial applications including swing motors brush cutters mowers and harvesting machinery. With an advanced design it boasts a 14.90 cu in/rev displacement and robust 1 in. straight keyed shaft.

Equipped with 2 bolt SAE A mounting flange and 7/8-14 St.Thd. O-Ring ports this motor offers superior installation flexibility. Its highly-efficient Geroler technology minimizes pressure drops ensuring optimal performance and energy savings.

Engineered for durability it supports a maximum case pressure of 2000 PSI without a case drain and can operate up to 180 F. Adhering to ISO cleanliness standards it requires premium quality anti-wear hydraulic fluids for optimal longevity.

Recommended break-in involves running the motor for approximately one hour at 30% of rated pressure to ensure maximum lifespan. Minimal fluid viscosity at operating temperature is 70 SUS with an ideal range of 100-200 SUS.

MPN: 104-1006

Supplier Part Number: 104-1006-006

Specifications

Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
10.41 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
245
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Disc

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Rex J on Apr 26, 2025, 9:02 PM
motor's been running fine but I want to make sure I ain't putting too much back pressure on it without a case drain line hooked up, what's the limit on that?
Answer by: Customer Support on Apr 28, 2025, 7:15 AM
Without an external case drain, max case pressure on this motor is 2000 PSI. If your system runs continuous back pressure above that threshold, you'll need to add an external case drain line and make sure it's plumbed so the motor case stays full of fluid at all times. Running above 2000 PSI without that drain is where things start to go wrong in a hurry.
Question by: Earl P on Feb 19, 2026, 1:06 PM
Hey, I'm looking for a motor for a mower I'm building. Would this Eaton Char-Lynn motor be a good fit?
Answer by: Customer Support on Feb 20, 2026, 6:25 PM
For brush cutters and mowers, this 2000 Series Geroler motor is often chosen, and it's also used in harvesting equipment.
