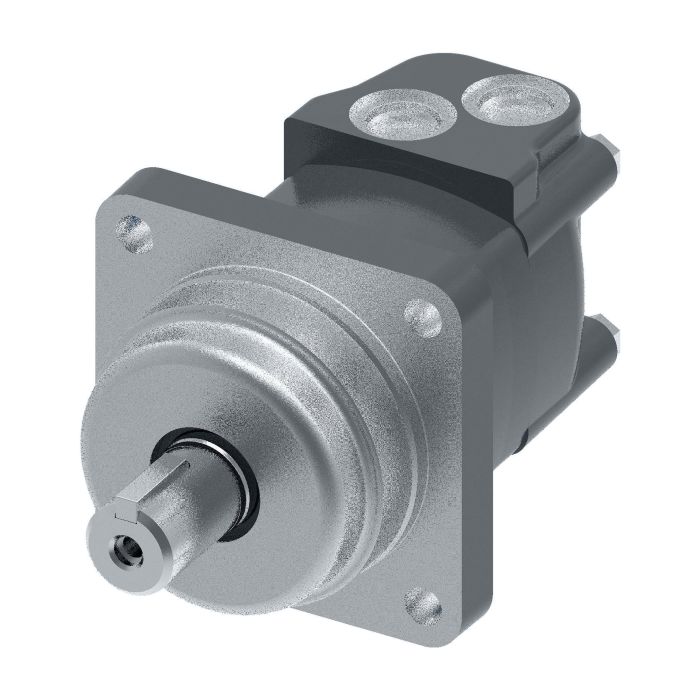

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

Description & Features

Optimize your industrial equipment with the Danfoss Power Solutions II LLC (Char-Lynn) 2000 Series Geroler Motor. Designed for applications such as swing motors brush cutters and harvesting equipment this motor features a 6.20 cu in/rev displacement and 2 Bolt SAE A mounting flange.

The motor is equipped with a 1-1/4 in. straight keyed shaft and 7/8-14 St.Thd. O-ring ports ensuring efficient and reliable performance. Known for its low pressure drop this highly-efficient Geroler motor offers significant energy savings.

With a maximum case pressure of 2000 PSI and the capability to handle continuous back pressure when using an external case drain line this motor meets demanding requirements. The recommended operating temperature is up to 180F and premium quality anti-wear type hydraulic fluid is advised for optimal performance.

Engineered with standard wheel or bearingless configurations it achieves a torque rating of 295 Newton meter making it an ideal choice for robust industrial applications. Adhering to ISO Cleanliness Code level 18/13 for filtration ensures longevity and reliability.

Design Code: 6

Supplier Part Number: 104-1023-006

Catalog Number: C1AH13

MPN: EAR99

Specifications

Application Swing motor, Brush Cutters & mowers, Harvesting equipment	Design Code 6	Displacement 6.20	Displacement 6.2	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings	Identification None	Mount 2 Bolt SAE A	Mount 2 Bolt SAE A	Port Type .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft 1-1/4 in. Straight Keyed	Shaft 1-1/4 in. Straight Keyed	Supplier Part Number 104-1023-006	Torque Rating 295 newton metre	Torque Rating 295 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 104-1023-006, Alternate Part Number C1AH13	Product Weight 23.59 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
104-1001 2000 Series Geroler Motor	4.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1002 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1003 2000 Series Geroler Motor	8	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1004 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1005 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1006 2000 Series Geroler Motor	14.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1007 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1011 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1022 2000 Series Geroler Motor	4.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1023 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1024 2000 Series Geroler Motor	8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1025 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1026 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1027 2000 Series Geroler Motor	14.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1028 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1029 2000 Series Geroler Motor	4.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1030 2000 Series Geroler Motor	6.2	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1031 2000 Series Geroler Motor	8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1033 2000 Series Geroler Motor	11.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1034 2000 Series Geroler Motor	14.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1035 2000 Series Geroler Motor	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1044 2000 Series Geroler Motor	24	2 Bolt SAE A	1 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1064 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1065 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1067 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1068 2000 Series Geroler Motor	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1143 2000 Series Geroler Motor	24	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1196 2000 Series Geroler Motor	9.6	2 Bolt SAE B	1 in. 6B Spline	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1228 2000 Series Geroler Motor	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1229 2000 Series Geroler Motor	24	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1386 2000 Series Geroler Motor	8	4 Bolt	32mm Straight Keyed	G 1/2 BSP	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1420 2000 Series Geroler Motor	29.8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1422 2000 Series Geroler Motor	29.8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1671 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-3371 2000 Series Geroler Motor	6.2	4 Bolt Magneto	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-4071 2000 Series Geroler Motor	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
105-1060 2000 Series Geroler Motor	24	Wheel Motor	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1012 2000 Series Geroler Motor	11.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1013 2000 Series Geroler Motor	14.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1014 2000 Series Geroler Motor	18.7	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1015 2000 Series Geroler Motor	24	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
