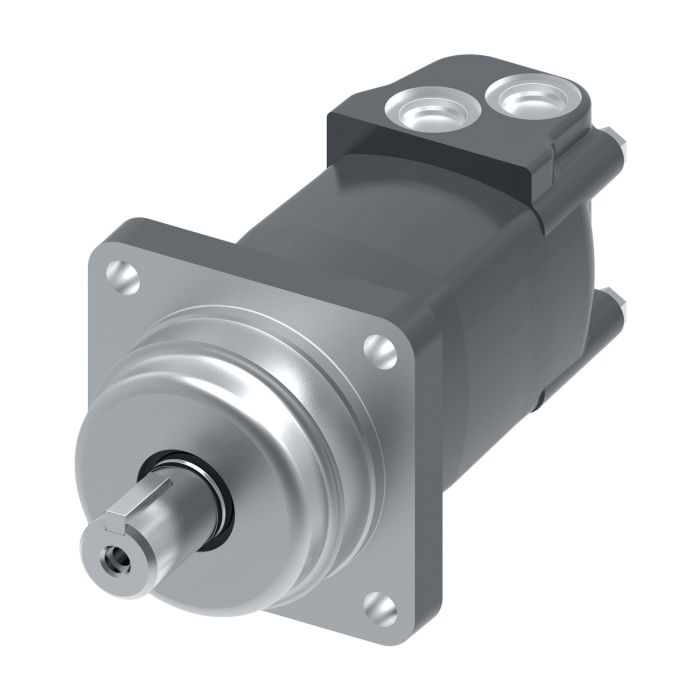

main product photo

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard motor provides efficient performance for swing motor applications. Featuring a displacement of 18.7 cu in/rev and a 2 Bolt SAE A mounting flange this motor is designed for reliability in demanding environments.

It is equipped with a 1-1/4 in. straight keyed shaft and staggered 7/8-14 St.Thd. O-Ring Ports ensuring secure and stable connections. This motor is highly efficient contributing to significant energy savings.

With a maximum case pressure of 2000 PSI an operating temperature of up to 180 F and a recommended fluid viscosity range of 100-200 SUS it performs well under various conditions. To maintain optimal function the motor should be filled with premium quality anti-wear hydraulic fluid and run for one hour at 30% rated pressure before full load applications.

Regular filtration per ISO Cleanliness Code level 18/13 is recommended. Applications include use in brush cutters mowers and harvesting equipment where the lowest pressure drop in the industry and standard or bearingless configurations enhance performance.

MPN: {{ecc_mpn}}

Supplier Part Number: {{supplierpartnumber}}

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
10.85 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
305
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Straight Square Keyed
Valve Type
Disc

Similar Products

Model Number Displacement Inlet Pressure Port Type Port Location Port Size Shaft Type Shaft Size Mounting Type Dimensions Segment Code Price Action
2000 Series Geroler Motor, 11.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1012 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

5.73 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1031 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1002 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1022 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1024 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1422 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.91 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1030 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1034 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.36 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1025 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1068 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1033 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1229 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.66 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1035 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1014 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

8.13 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1023 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1006 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Wheel Motor Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

105-1060 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

4-Bolt Wheel Flanged

10.03 in L x 5.28 in W x 5.28 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1029 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.3 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1003 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1420 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

12.17 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Low Gloss Black Paint

104-1671 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

8.49 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1228 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1027 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 4 Bolt Magneto Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, Black Paint

104-3371 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

4-Bolt Flanged

8.74 in L x 5.34 in W x 4.45 in H

B

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1067 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1011 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

2-Bolt Flanged

9.91 in L x 5.16 in W x 6.96 in H

B

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1143 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1005 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1004 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, 2000 psi cross-over relief

104-4071 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

B

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE B Mounting Flange, 1 in. 6B Spline Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1196 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

1 in Dia

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1013 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

6.09 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1026 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1001 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1064 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

8.99 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1015 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

7.17 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1007 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1065 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 4 Bolt Mounting Flange, 32mm Straight Keyed Shaft, G 1/2 BSP Ports, Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

104-1386 2000 Series Geroler Motor

BSP

Side, Staggered

Straight Rectangular Keyed

32 mm Dia

4-Bolt Square Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1044 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.69 in L x 5.16 in W x 4.33 in H

A

Product Questions & Answers (2)

Question by: Denise P on Jun 5, 2025, 9:46 AM
been looking at this for a brush cutter setup, does the shaft and mount actually line up with standard SAE A equipment or do i need adapters?
Answer by: Customer Support on Jun 6, 2025, 9:10 PM
The 2 Bolt SAE A mounting flange and the 1-1/4 in. straight keyed shaft are both standard configurations, so fitting this into SAE A-compatible equipment should be straightforward without adapters. The ports are 7/8-14 straight thread O-ring style and are staggered, which gives you a bit more flexibility in tight hydraulic connections situations. Just make sure your hydraulic lines are sized and threaded to match that 7/8-14 spec before you button everything up.
Question by: Clint C on Feb 12, 2026, 2:36 PM
Will this motor hold up okay in a mower application, you reckon?
Answer by: Customer Support on Feb 13, 2026, 5:34 PM
Harvesting equipment and brush cutters are listed among the applications for this Eaton Char-Lynn motor.
