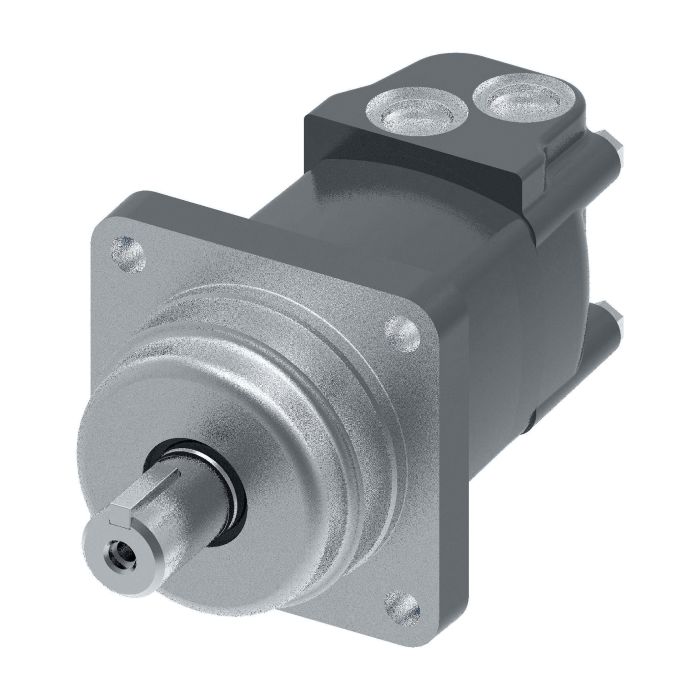

main product photo

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard Motor is designed for the toughest industrial applications including swing motors brush cutters mowers and harvesting equipment. With a displacement of 11.90 cubic inches per revolution this motor provides efficiency and energy savings through its highly-efficient Geroler design.

The motor features a 2 Bolt SAE A mounting flange and a SAE C splined 14T shaft. The ports are 7/8-14 St.Thd. O-Ring ensuring secure and reliable fluid connections. Built to withstand tough conditions it has a maximum case pressure of 2000 PSI and can operate at temperatures up to 180F.

It is recommended to use premium quality anti-wear type hydraulic fluid and maintain fluid cleanliness at level 18/13 per ISO standards. The motor should be run for approximately one hour at 30% of rated pressure before full load application to ensure optimal performance and longevity.

Maximum efficiency is achieved with a minimum fluid viscosity of 70 SUS at operating temperature with a recommended range of 100-200 SUS. This motor offers robust construction and consistent performance.

Supplier Part Number: 104-1033-006

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
8 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Type
Splined
Valve Type
Disc

Similar Products

Model Number Displacement Inlet Pressure Port Type Port Location Port Size Shaft Type Shaft Size Mounting Type Dimensions Segment Code Price Action
2000 Series Geroler Motor, 11.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1012 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

5.73 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1031 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1002 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1022 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1024 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1422 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.91 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1030 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1034 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.36 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1025 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1068 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1229 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

11.66 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1028 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1035 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

8.8 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1014 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

8.13 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1023 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

9.54 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1006 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Wheel Motor Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

105-1060 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

4-Bolt Wheel Flanged

10.03 in L x 5.28 in W x 5.28 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1029 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

7.3 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1003 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 29.80 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1420 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

12.17 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports, Low Gloss Black Paint

104-1671 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

8.49 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1228 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1027 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.41 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 6.20 cu in/rev, 4 Bolt Magneto Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, Black Paint

104-3371 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

4-Bolt Flanged

8.74 in L x 5.34 in W x 4.45 in H

B

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1067 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Tapered Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1011 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Tapered Square Keyed

2-Bolt Flanged

9.91 in L x 5.16 in W x 6.96 in H

B

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1143 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

11.49 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1005 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1004 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports, 2000 psi cross-over relief

104-4071 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

2-Bolt Flanged

10.05 in L x 5.16 in W x 4.33 in H

B

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE B Mounting Flange, 1 in. 6B Spline Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1196 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Splined

1 in Dia

2-Bolt Flanged

7.74 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 14.90 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1013 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

6.09 in L x 6.2 in W x 6.2 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1026 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 4.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1001 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

9.35 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 9.60 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1064 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

8.99 in L x 5.16 in W x 4.33 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, Bearingless Mounting Flange, None Shaft, 7/8-14 St.Thd. O-Ring Ports,

106-1015 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

4-Bolt Flanged

7.17 in L x 4.69 in W x 4.69 in H

A

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

104-1007 2000 Series Geroler Motor

UNF-2B, SAE O-ring

Side, Staggered

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.85 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 11.90 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1065 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Square Keyed

2-Bolt Flanged

10.05 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 8.00 cu in/rev, 4 Bolt Mounting Flange, 32mm Straight Keyed Shaft, G 1/2 BSP Ports, Standard, wheel or bearingless configurations|Lowest pressure drop motor in the industry|Highly-efficient Geroler motor provides energy savings

104-1386 2000 Series Geroler Motor

BSP

Side, Staggered

Straight Rectangular Keyed

32 mm Dia

4-Bolt Square Flanged

9.79 in L x 5.16 in W x 6.96 in H

A

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

104-1044 2000 Series Geroler Motor

UN-2B, SAE O-ring

Side, 180 deg

Straight Woodruff Keyed

1 in Dia

2-Bolt Flanged

10.69 in L x 5.16 in W x 4.33 in H

A

Product Questions & Answers (3)

Question by: Duane W on Sep 13, 2025, 7:37 AM
what's the break-in procedure on this motor? got one going on a brush cutter and don't want to burn it up right out of the gate
Answer by: Customer Support on Sep 14, 2025, 8:36 AM
Run it for roughly an hour at about 30% of rated pressure before you put it under full load. Make sure the motor case is filled with fluid before you apply any load at all, even during that break-in period. Skipping that step is one of the fastest ways to shorten the life of a motor like this, so it's worth taking the time upfront.
Question by: Hugh R on Nov 15, 2025, 11:17 AM
got a setup with 7/8-14 o-ring ports already, are the ports on this motor that same thread?
Answer by: Customer Support on Nov 17, 2025, 6:59 AM
Porting is 7/8-14 straight thread SAE O-ring (UNF-2B), and this version uses staggered O-ring ports. That matches common 7/8-14 ORB fittings and keeps the seal on the O-ring, not on pipe threads.
Question by: Frank H on Jun 21, 2025, 8:27 AM
Will this motor work okay for a mower application like it says?
Answer by: Customer Support on Jun 23, 2025, 6:11 AM
Designed for tough jobs like swing motors and brush cutters, this motor should be a good fit for mower applications.
