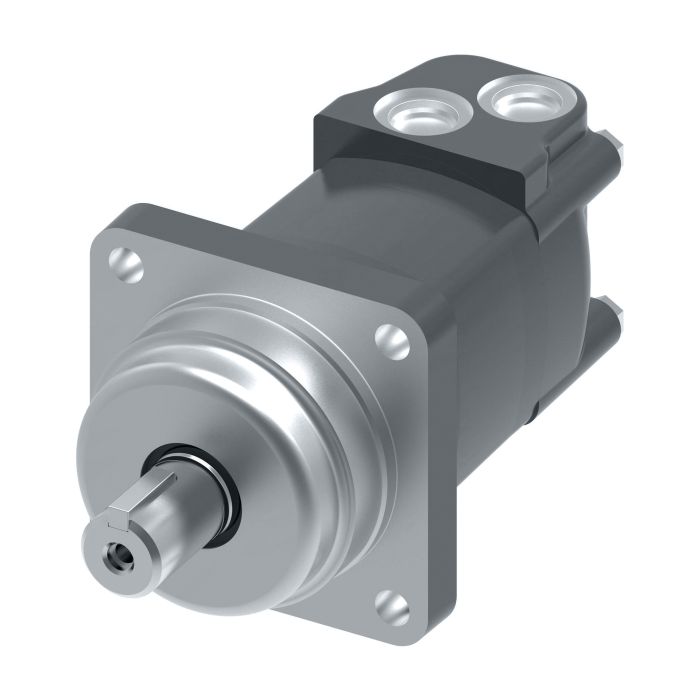

2000 Series Geroler Motor, 14.90 cu in/rev, 2 Bolt SAE A Mounting Flange, SAE C Splined 14T Shaft, 7/8-14 St.Thd. O-Ring Ports,

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard is precision-engineered for industrial applications such as brush cutters mowers and harvesting equipment. Designed with a 14.90 cu in/rev displacement this motor incorporates a 2 Bolt SAE A mounting flange and a 7/8-14 St.Thd. O-Ring port configuration ensuring reliable and efficient fluid transfer.

Featuring a highly-efficient Geroler motor design this unit achieves the lowest pressure drop in the industry offering significant energy savings. The SAE C splined 14T shaft and a torque rating of 660 newton metres deliver robust performance capable of handling demanding workloads.

This motor operates optimally with premium quality anti-wear type hydraulic fluid and adheres to the recommended ISO cleanliness code at level 18/13. A maximum operating temperature of 180 F and a maximum case pressure of 2000 PSI without a case drain ensure versatile and reliable functioning under various conditions.

Proper break-in procedures including running the motor for one hour at 30% of rated pressure are recommended to maximize motor life. The unit is compatible with wheel or bearingless configurations making it adaptable for various applications.

MPN: 104-1034-006

Supplier Part Number: 104-1034-006

Specifications

Application Swing motor, Brush Cutters & mowers, Harvesting equipment	Design Code 6	Displacement 14.90	Displacement 14.9	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings	Identification None	Mount 2 Bolt SAE A	Mount 2 Bolt SAE A	Port Type .875-14 UNF-2B SAE O-Ring Ports - Staggered Ports	Ports 7/8-14 St.Thd. O-Ring	Ports 7/8-14 St.Thd. O-Ring	Shaft SAE C Splined 14T	Shaft SAE C Splined 14T	Supplier Part Number 104-1034-006	Torque Rating 660 newton metre	Torque Rating 660 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 0330048128, Alternate Part Number 104-1034-006, Alternate Part Number C1AH20, Alternate Part Number MINO-00162X03736	Product Weight 26.00 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
104-1001 2000 Series Geroler Motor	4.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1002 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1003 2000 Series Geroler Motor	8	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1004 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1005 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1006 2000 Series Geroler Motor	14.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1007 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1011 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1022 2000 Series Geroler Motor	4.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1023 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1024 2000 Series Geroler Motor	8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1025 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1026 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1027 2000 Series Geroler Motor	14.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1028 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1029 2000 Series Geroler Motor	4.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1030 2000 Series Geroler Motor	6.2	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1031 2000 Series Geroler Motor	8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1033 2000 Series Geroler Motor	11.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1034 2000 Series Geroler Motor	14.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1035 2000 Series Geroler Motor	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1044 2000 Series Geroler Motor	24	2 Bolt SAE A	1 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1064 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1065 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1067 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1068 2000 Series Geroler Motor	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1143 2000 Series Geroler Motor	24	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1196 2000 Series Geroler Motor	9.6	2 Bolt SAE B	1 in. 6B Spline	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1228 2000 Series Geroler Motor	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1229 2000 Series Geroler Motor	24	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1386 2000 Series Geroler Motor	8	4 Bolt	32mm Straight Keyed	G 1/2 BSP	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1420 2000 Series Geroler Motor	29.8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1422 2000 Series Geroler Motor	29.8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1671 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-3371 2000 Series Geroler Motor	6.2	4 Bolt Magneto	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-4071 2000 Series Geroler Motor	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
105-1060 2000 Series Geroler Motor	24	Wheel Motor	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1012 2000 Series Geroler Motor	11.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1013 2000 Series Geroler Motor	14.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1014 2000 Series Geroler Motor	18.7	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1015 2000 Series Geroler Motor	24	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings

Product Questions & Answers (1)

Question by: Johnny M on Mar 28, 2025, 12:26 PM

got a mower that needs a swing motor, would this 2000 series one work for that kind of job?

Answer by: Customer Support on Mar 30, 2025, 7:05 AM

For real-world equipment use, this motor is called out for swing motor duty and for brush cutters, mowers, and harvesting equipment. It is a 2000 Series disc Geroler standard with 14.90 cu in/rev displacement, so it fits the type of applications you mentioned when the machine is set up for that style of motor.
