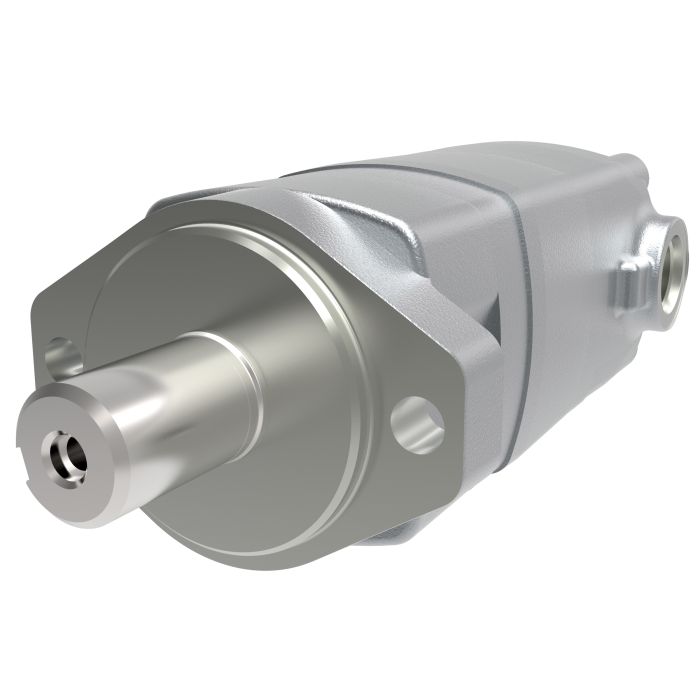

2000 Series Geroler Motor, 18.70 cu in/rev, 2 Bolt SAE A Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.Thd. O-Ring Ports, Ports 180° Apart

Description & Features

The Danfoss Power Solutions II LLC Char-Lynn 2000 Series Disc Geroler Standard motor is specially designed for industrial applications such as swing motors brush cutters mowers and harvesting equipment. Its 18.7 cu in/rev displacement and highly-efficient Geroler design ensure minimal pressure drop and energy savings.

The 2 Bolt SAE A mounting flange and 1-1/4 in. straight keyed shaft provide robust installation options. The motor features 1-1/16-12 St.Thd. O-ring ports oriented 180 degrees apart for versatile connectivity.

With a torque rating of 765 newton meters this motor supports challenging tasks. Designed to operate within a fluid viscosity range of 100-200 SUS it can sustain maximum case pressures up to 2000 PSI without a case drain.

To prolong motor life a break-in period at 30% of the rated pressure is recommended. The motor is compatible with premium anti-wear type hydraulic fluids and should be maintained with filtration levels per ISO Cleanliness Code 18/13.

MPN: 104-1067-006

Supplier Part Number: 104-1067-006

Specifications

Application Swing motor, Brush Cutters & mowers, Harvesting equipment	Design Code 6	Displacement 18.70	Displacement 18.7	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings	Identification None	Mount 2 Bolt SAE A	Mount 2 Bolt SAE A	Port Type 1.0625-12 UN-2B SAE O-Ring Ports - Ports Oriented 180 Deg To Each Other	Ports 1-1/16-12 St.Thd. O-Ring	Ports 1-1/16-12 St.Thd. O-Ring	Shaft 1-1/4 in. Straight Keyed	Shaft 1-1/4 in. Straight Keyed	Supplier Part Number 104-1067-006	Torque Rating 765 newton metre	Torque Rating 765 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 104-1067-006, Alternate Part Number C1AH22, Alternate Part Number MINO-00162X03900	Product Weight 27.75 lbs

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
104-1001 2000 Series Geroler Motor	4.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1002 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1003 2000 Series Geroler Motor	8	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1004 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1005 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1006 2000 Series Geroler Motor	14.9	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1007 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1011 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1022 2000 Series Geroler Motor	4.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1023 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1024 2000 Series Geroler Motor	8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1025 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1026 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1027 2000 Series Geroler Motor	14.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1028 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1029 2000 Series Geroler Motor	4.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1030 2000 Series Geroler Motor	6.2	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1031 2000 Series Geroler Motor	8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1033 2000 Series Geroler Motor	11.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1034 2000 Series Geroler Motor	14.9	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1035 2000 Series Geroler Motor	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1044 2000 Series Geroler Motor	24	2 Bolt SAE A	1 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1064 2000 Series Geroler Motor	9.6	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1065 2000 Series Geroler Motor	11.9	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1067 2000 Series Geroler Motor	18.7	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1068 2000 Series Geroler Motor	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1143 2000 Series Geroler Motor	24	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1196 2000 Series Geroler Motor	9.6	2 Bolt SAE B	1 in. 6B Spline	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1228 2000 Series Geroler Motor	24	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1229 2000 Series Geroler Motor	24	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1386 2000 Series Geroler Motor	8	4 Bolt	32mm Straight Keyed	G 1/2 BSP	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1420 2000 Series Geroler Motor	29.8	2 Bolt SAE A	1-1/4 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1422 2000 Series Geroler Motor	29.8	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-1671 2000 Series Geroler Motor	6.2	2 Bolt SAE A	1 in. Straight Keyed	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-3371 2000 Series Geroler Motor	6.2	4 Bolt Magneto	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
104-4071 2000 Series Geroler Motor	18.7	2 Bolt SAE A	SAE C Splined 14T	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
105-1060 2000 Series Geroler Motor	24	Wheel Motor	1-1/4 in. Tapered	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1012 2000 Series Geroler Motor	11.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1013 2000 Series Geroler Motor	14.9	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1014 2000 Series Geroler Motor	18.7	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
106-1015 2000 Series Geroler Motor	24	Bearingless	None	7/8-14 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings

Product Questions & Answers (2)

Question by: Vince H on Sep 3, 2025, 7:31 AM

Will this motor work on my brush hog, or is it too much?

Answer by: Customer Support on Sep 4, 2025, 12:31 PM

For brush cutting and mowing, this Char-Lynn 2000 series motor is designed to handle those applications.

Question by: Randy R on Apr 25, 2025, 12:24 PM

been running a brush cutter setup and need something that'll hold up to the torque demands without dropping too much pressure across the motor. what's the displacement and torque output on this one?

Answer by: Customer Support on Apr 26, 2025, 9:32 PM

At 18.7 cubic inches per revolution, this motor puts out 765 newton meters of torque, which is a solid number for brush cutter and mowing applications. The Geroler design is known for keeping pressure drop low compared to other motor styles at similar displacement, so you're not burning extra energy just moving fluid through the unit. That efficiency advantage is one of the main reasons this series gets spec'd into heavy-duty cutting equipment.
