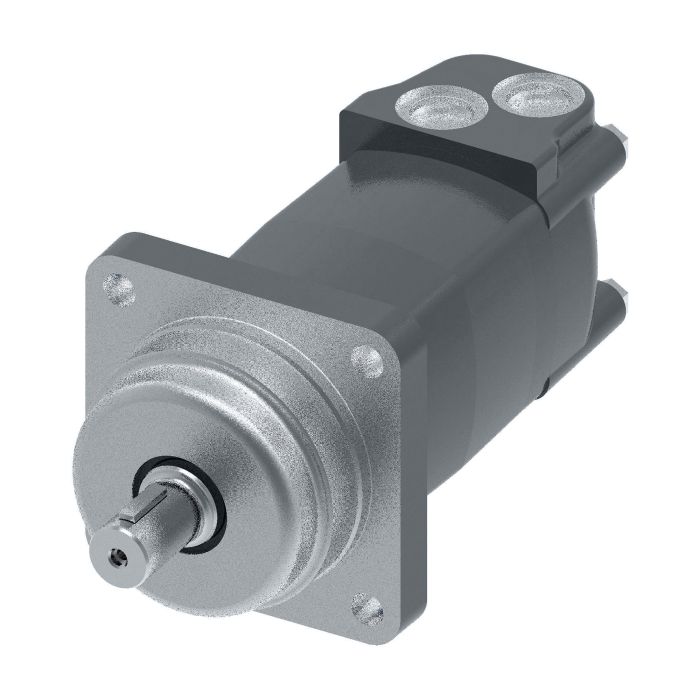

main product photo

2000 Series Geroler Motor, 24.00 cu in/rev, 2 Bolt SAE A Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd. O-Ring Ports,

Ask A Question

Description & Features

The Danfoss / Eaton Char-Lynn 2000 Series Disc Geroler Standard motor is engineered for applications such as swing motors brush cutters mowers and harvesting equipment. It features a 24.00 cu in/rev displacement and a 1-inch straight keyed shaft for secure coupling with your machinery. The motor's lowest pressure drop in the industry underscores its efficiency.

With its 2 Bolt SAE A mounting flange this motor facilitates easy installation. It supports a fluid viscosity within the recommended range of 100-200 SUS ensuring optimal performance. Its highly-efficient Geroler design offers significant energy savings.

Designed to handle a maximum operating temperature of 180 F it supports a 2000 PSI maximum case pressure without the need for an external case drain. O-Ring ports are staggered for convenient connection.

Supplier Part Number: 104-1143-006

MPN: 104-1143

Specifications

Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
6
Dimensions
11.49 in L x 5.16 in W x 6.96 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Motor Function
1-Speed
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Segment Code
A
Series
2000 Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Disc

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Wes E on Jun 3, 2025, 7:54 PM
does this motor need an external case drain line, or is it good to go without one?
Answer by: Customer Support on Jun 5, 2025, 6:06 AM
Up to 2000 PSI of continuous back pressure, no external case drain is needed. If your application pushes past that threshold on a sustained basis, you'll want to run an external drain line and make sure the motor case stays full of fluid at all times. For most swing motor and brush cutter setups running within that range, you're fine without it.
